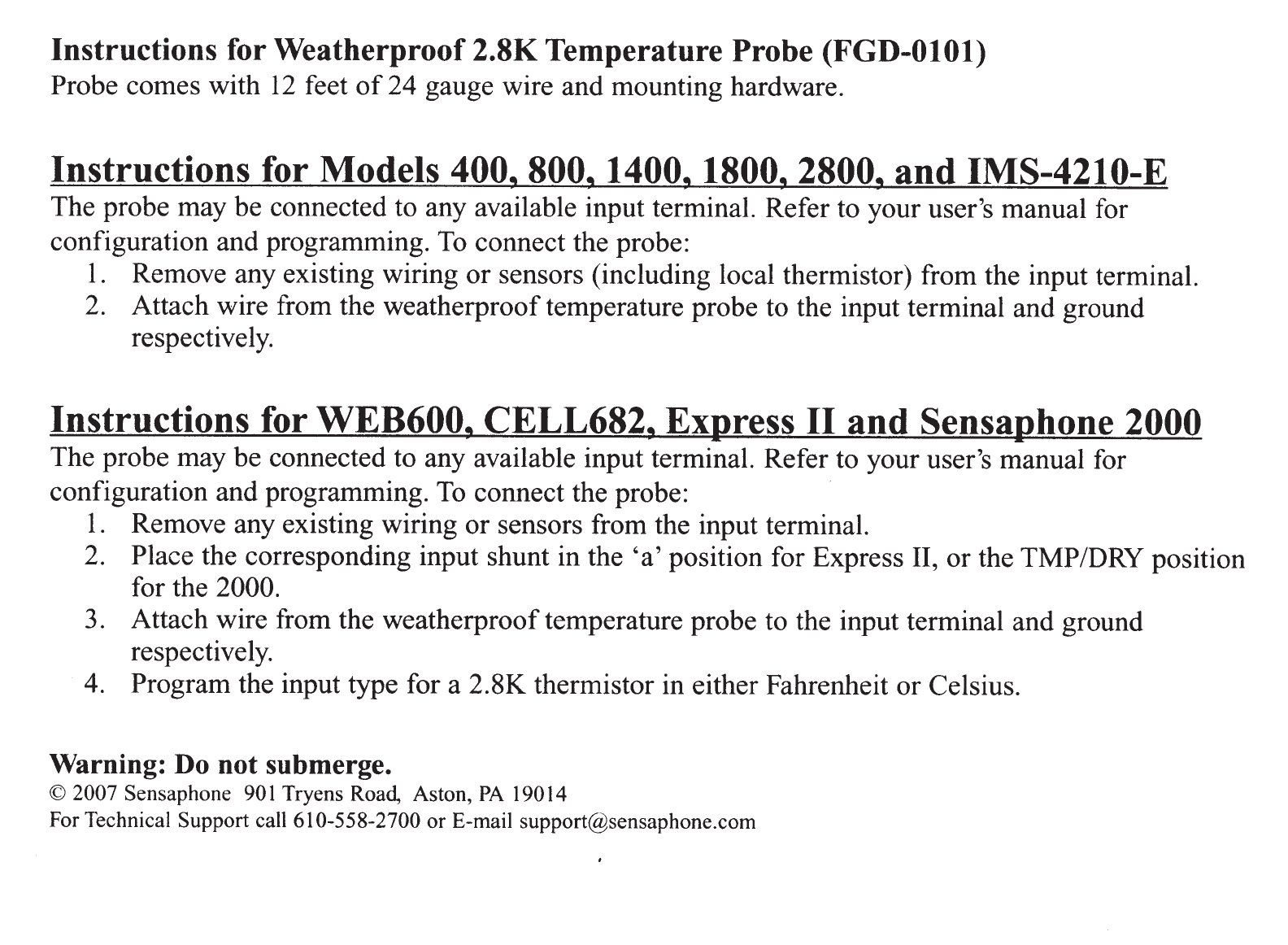

Instructions for Weatherproof 2.8K Temperature Probe (FGD-0101)
Probe comes with
12
feet
of
24 gauge wire and mounting hardware.
Instructions for Models 400, 800, 1400, 1800, 2800,
and
IMS-4210-E
The probe may be connected to any available input terminal. Refer to your user's manual for
configuration and programming.
To
connect the probe:
1.
Remove any existing wiring or sensors (including local thermistor) from the input terminal.
2.
Attach wire from the weatherproof temperature probe to the input terminal and ground
respectively.
Instructions for WEB600,
CELL682, Express II and Sensaphone
2000
The probe may be connected to any available input terminal. Refer to your user's manual for
configuration and programming.
To
connect the probe:
1.
Remove any existing wiring or sensors from the input terminal.
2.
Place the corresponding input shunt in the
'a'
position for Express II, or the TMP/DRY position
for the 2000.
3.
Attach wire from the weatherproof temperature probe to the input terminal and ground
respectively.
4.
Program the input type for a 2.8K thermistor in either Fahrenheit or Celsius.
Warning: Do not submerge.
©
2007
Sensaphone 901 Tryens Road, Aston,
PA
19014
For Technical
Support
call 610-558-2700
