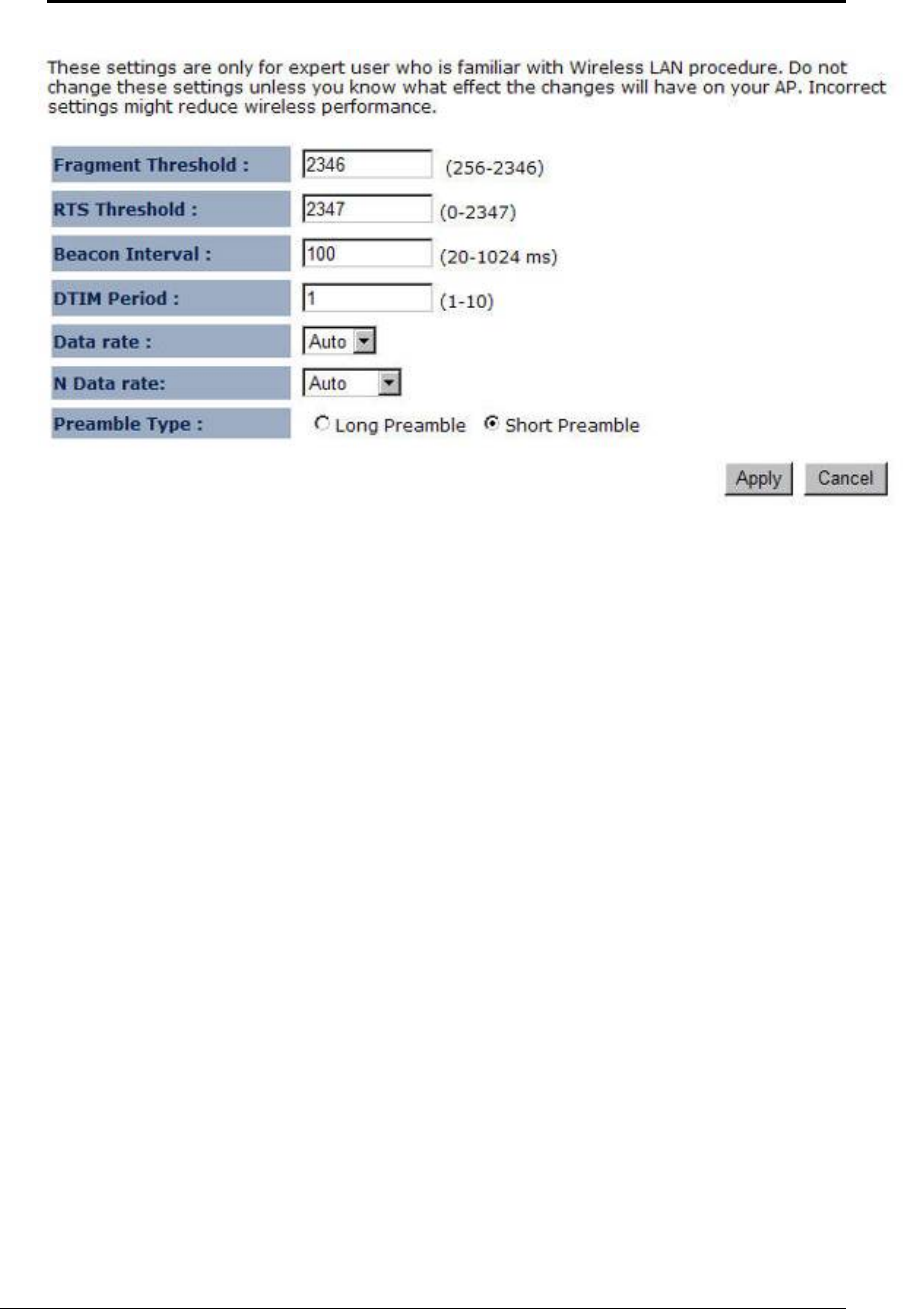

 Fragment Threshold: Packets over the specified size will be fragmented in order to improve
performance on noisy networks. Specify a value between 256 and 2346. The default value is
2346.
 RTS Threshold: Packets over the specified size will use the RTS/CTS mechanism to
maintain performance in noisy networks and preventing hidden nodes from degrading the
performance. Specify a value between 0 and 2347. The default value is 2347.
 Beacon Period: Beacons are packets sent by a wireless Access Point to synchronize wireless
devices. Specify a Beacon Period value between 20 and 1024. The default value is set to 100
milliseconds.
 DTIM Period: A DTIM is a countdown informing clients of the next window for listening to
broadcast and multicast messages. When the wireless Access Point has buffered broadcast or
multicast messages for associated clients, it sends the next DTIM with a DTIM Period value.
Wireless clients detect the beacons and awaken to receive the broadcast and multicast
messages. The default value is 1. Valid settings are between 1 and 10.
 Data Rate: You may select a data rate from the drop-down list, however, it is recommended
to select auto. This is also known as auto-fallback.
 N Data Rate: You may select a data rate for 802.11n from the drop-down list, however, it is
recommended to select auto. This is also known as auto-fallback.
 Preamble Type: Select a short or long preamble. For optimum performance it is
recommended to also configure the client device as the same preamble type.
 Click on the Apply button to save the changes.
3.2.4.3.4 AP Profile
 Click on the AP Profile link under the Wireless drop-down menu.
 This page allows you to configure the profile of the Client Bridge including Security Setting
exactly the same as the Access Point.
