3.2.1 Status

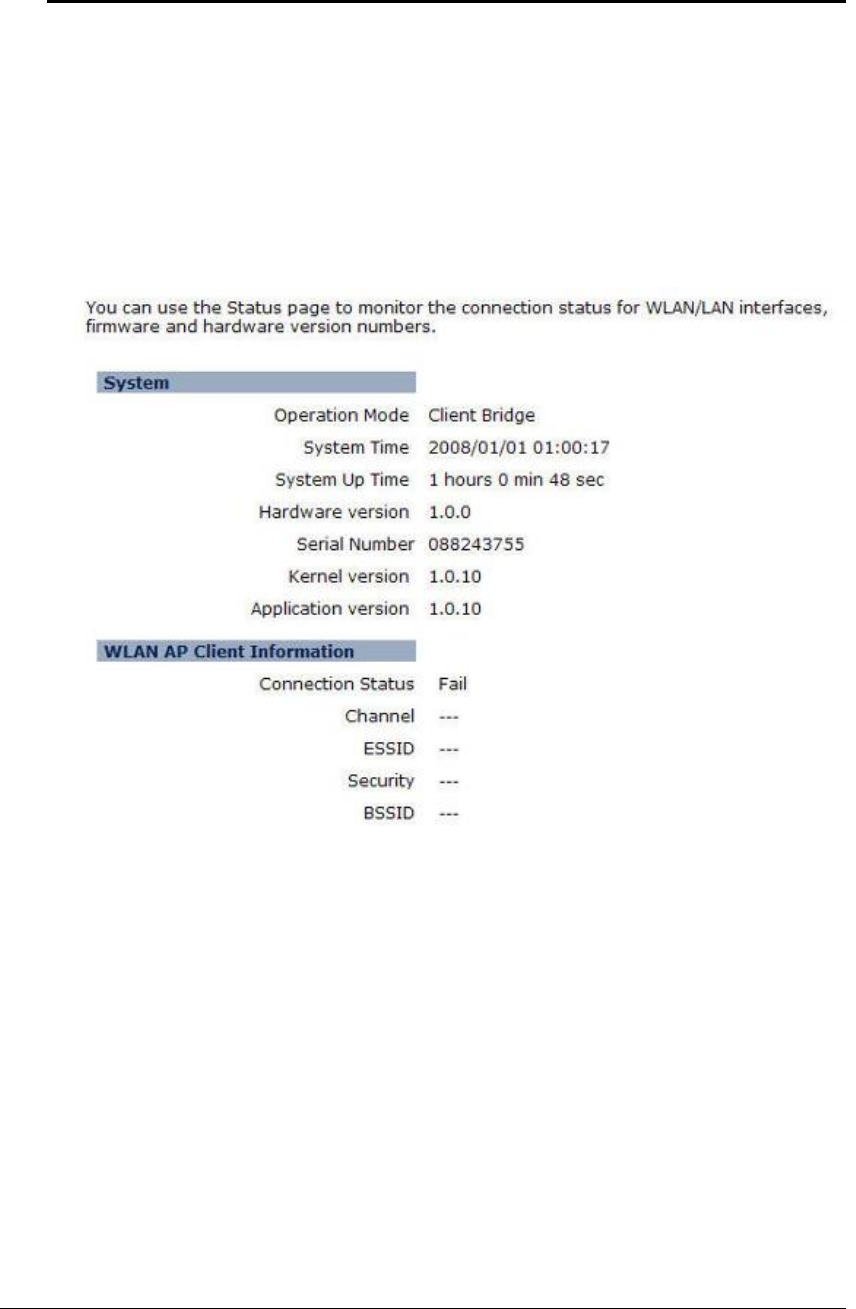

 Click on the Status link under the System drop-down menu. The status page displays a

summary of current system settings. Information such as operating mode, system up time,

firmware version, serial number, kernel version and application version are displayed in the

‘System’ section. LAN IP address, subnet mask, and MAC address are displayed in the

‘LAN’ section. In the ‘WLAN’ section, the frequency, channel is displayed. Since this device

supports multiple-SSIDs, the details of each SSID, such as ESSID and its security settings are

displayed in the ‘SSID_#’ section.

3.2.2 Schedule

 Click on the Schedule link in the navigation menu. Prior to setting schedule, time zone must

be set in the Tools menu. Schedules can be created to specify the occasions to enforce the

rules.

 For example, if you want enable power saving on Mon-Fri from 3pm to 8pm, you could

create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a Start Time of 3pm and

End Time of 8pm.
