Datasheet

www.sensirion.com Version 0.9 – August 2017 4/15
recommended range, especially at high humidity, may affect the sensor performance. Prolonged exposure to extreme
conditions may accelerate aging. To ensure stable operation of the gas sensor, the conditions described in the document SGP
Handling and Assembly Instructions regarding exposure to exceptionally high concentrations of some organic or inorganic
compounds have to be met, particularly during operation. Please also refer to the Design-in Guide for optimal integration of the
SGP30.
2 Electrical Specifications
Parameter
Min.
Typ.
Max.
Unit
Comments
Supply voltage V
DD
1.62
1.8
1.98
V
Minimal voltage must be guaranteed also for the
maximum supply current specified in this table.
Hotplate supply voltage V
DDH
1.62
1.8
1.98
V
Supply current in measurement mode
6
48.2
mA
The measurement mode is activated by sending
an “Init_air_quality” or “Measure_raw_signal”
command. Specified at 25°C and typical VDD.
Sleep current
2
10
μA
The sleep mode is activated after power-up or
after a soft reset. Specified at 25°C and typical
VDD.
LOW-level input voltage
-0.5
0.3*VDD
V
HIGH-level input voltage
0.7*VDD
VDD+0.5
V
Vhys hysteresis of Schmitt trigger inputs
0.05*VDD
V
LOW-level output voltage
0.2*VDD
V
(open-drain) at 2mA sink current
Communication
Digital 2-wire interface, I
2
C fast mode.
Table 3 Electrical specifications.
3 Interface Specifications
The SGP30 comes in a 6-pin DFN package, see Table 4.
Pin
Name
Comments
1
V
DD
Supply voltage
2
V
SS
Ground
3
SDA
Serial data, bidirectional
4
R
Connect to ground (no electrical function)
5
V
DDH
Supply voltage, hotplate
6
SCL
Serial clock, bidirectional

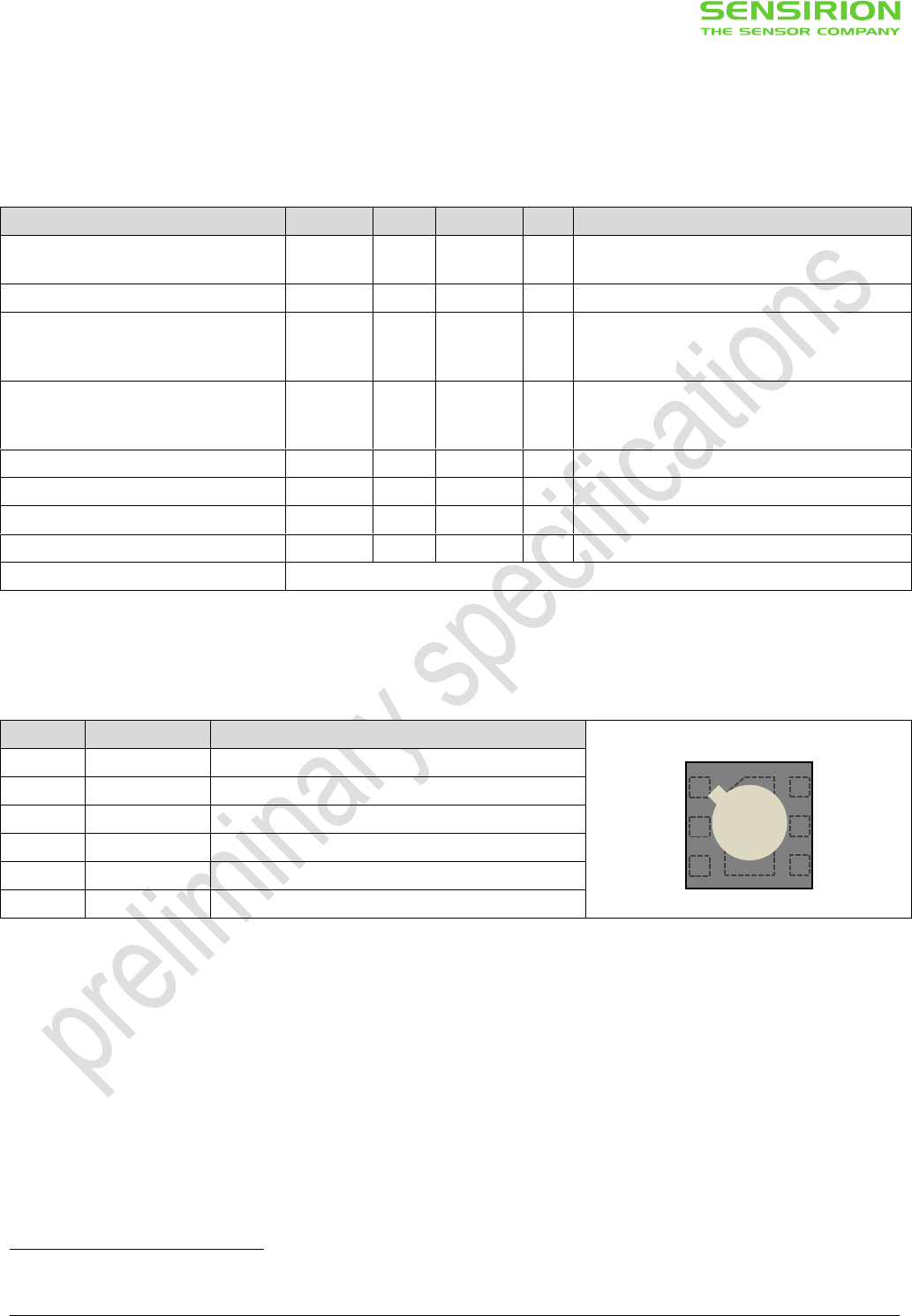

Table 4 Pin assignment (transparent top view). Dashed lines are only visible from the bottom.
6
A 20% higher current is drawn during 5ms on V
DDH
after entering the measurement mode.
3
A X
0
8 9
1
2
3
6
5
4
S
GP
