Seed Hawk Manual Tool Bar Page 44
7.0 MAINTENANCE
7.1 HYDRAULIC CARTRIDGES

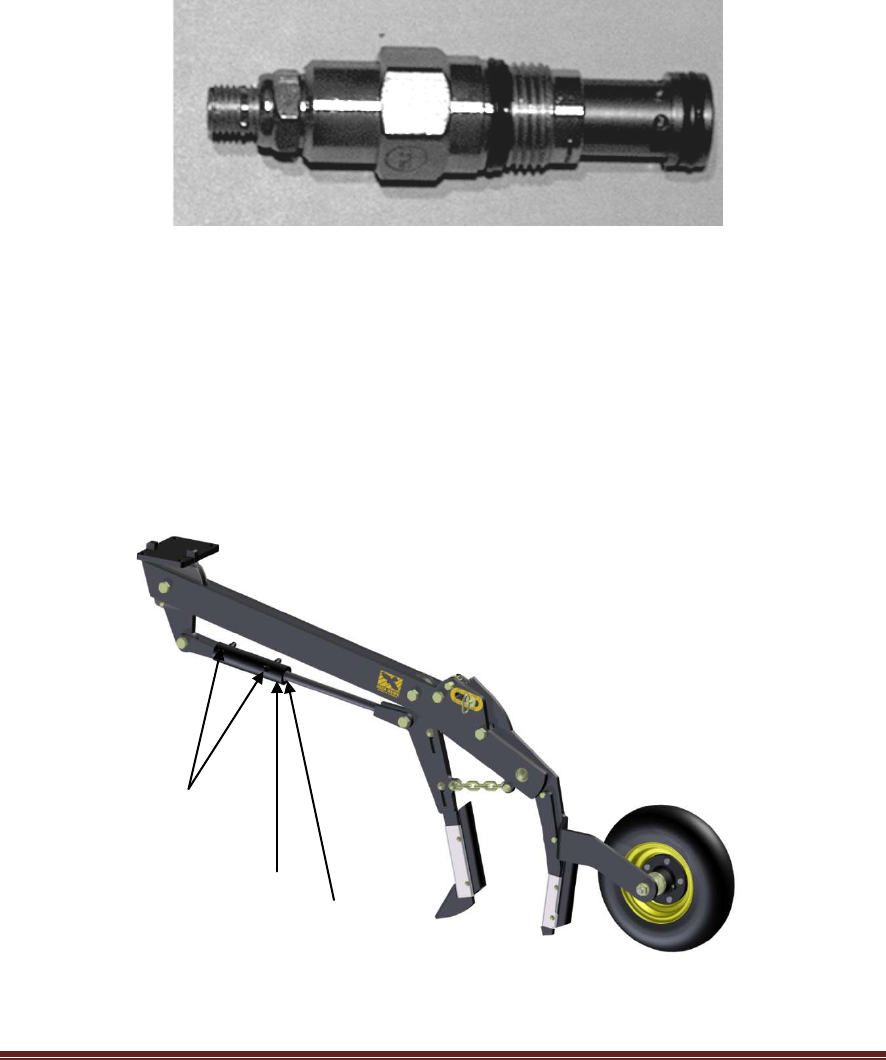

Hydraulic cartridges, Figure 25, which is located on hydraulic block, should be
removed, inspected and cleaned at the end of each seeding season. Some cartridges
may be disassembled for additional access for cleaning. It is recommended that the
disassembly and further cleaning of this type of cartridge be performed by a technician
trained in hydraulic component servicing.
7.2 HYDRAULIC CYLINDERS
Inspect hydraulic cylinder seals and hose connections at cylinder fittings every 10
hrs or daily. Tighten any loose fittings, Figure 26. Cylinder seals are replaceable.
Contact a technician trained in hydraulic maintenance and repairs if assistance is
required for replacing cylinder seals.
HOSE FITTINGS
CYLINDER
SEALS
Figure 25
Figure 26
