Seed Hawk Manual Tool Bar Page 31
4.8.5 Mud Scraper Adjustment
Ensure that the Pneumatic packer tire had a pressure of 10 to 15lbs. There is no
adjustment to the Semi-pneumatic since there is no air pressure. Also ensure the
gap between the packer tire and the mud scraper is between the distance labled in
Figure 12. Be sure to check mud scraper setting before seeding and every year to
ensure proper gap between packer tire and mud scraper.

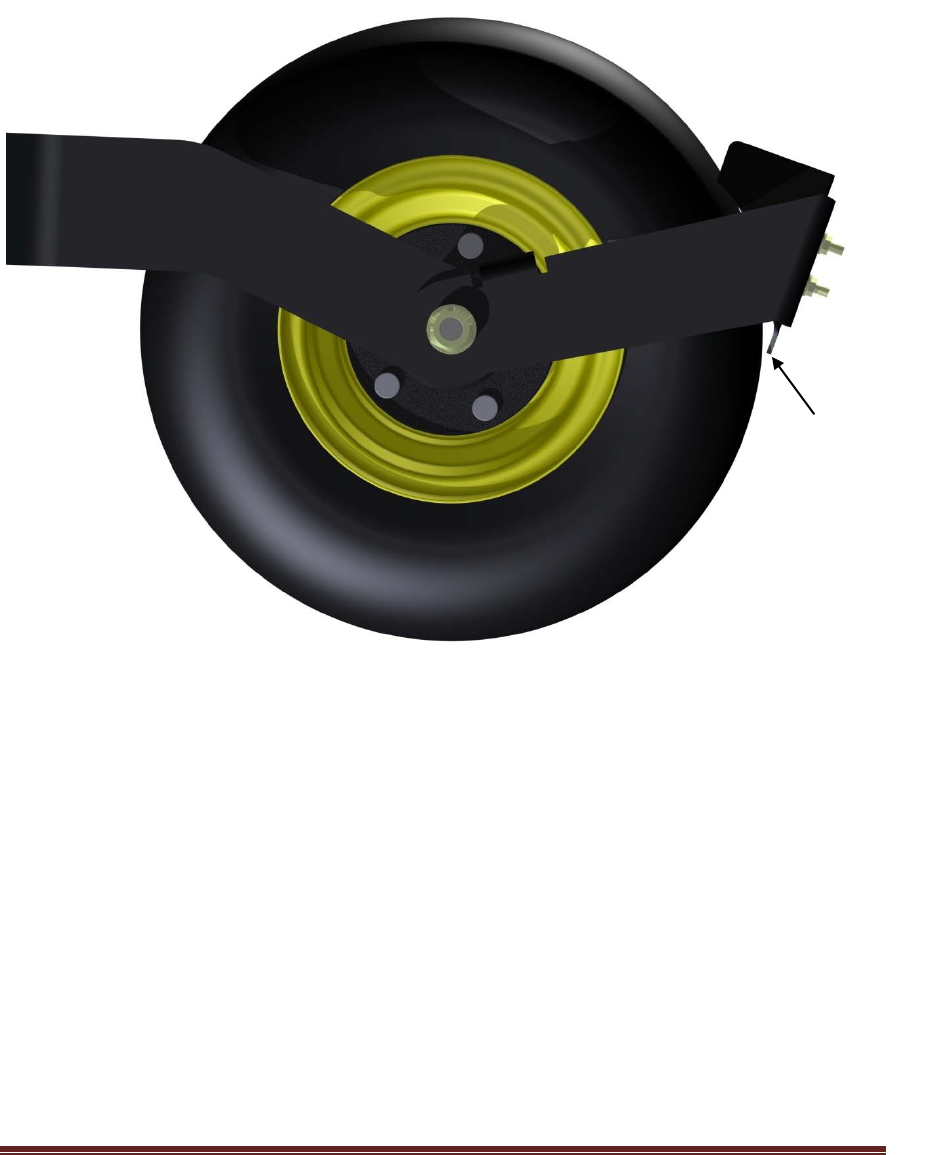

Figure 12
Gap 1/16” to
1/8”
