LIQUID SYSTEM OPERATION

SEED HAWK



LIQUID

FERTILIZER SYSTEM

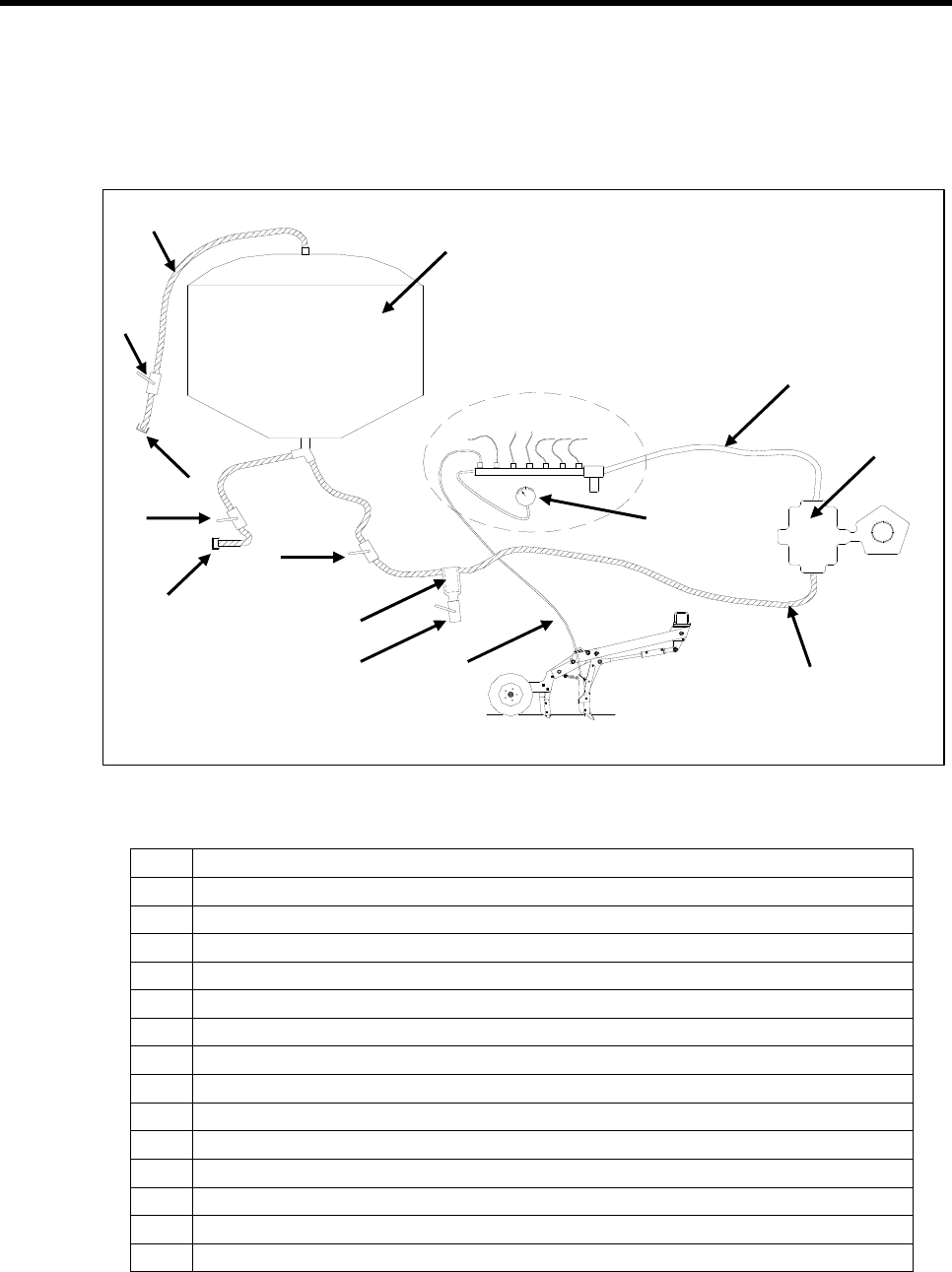

FIG. 39.

1 Tank

2 Fill cap

3 Fill valve

4 Recirculation valve

5 Flow valve

6 Recirculation hose

7 Main filter

8 Filter valve

9 Suction line from tank

10 Metering pump

11 Recirculation cap

12 Pump pressure hose to distribution manifolds

13 Distribution manifolds

14 Liquid fertilizer pressure gauge

15 Delivery hoses

FIG. 39

14

6

1

4

2

3

5

7

8 15

10

11

13

12

9
