contain PTZ camera.
Protocol – PTZ device communication protocol.2.
Serial Port – A serial COM port the computer 3.
assigns and uses to communicate with the PTZ
protocol camera.
Address - PTZ device communication address, a 4.
unique ID address uses to identify the PTZ proto-
col camera.
Serial Port Setting
After the Protocol conguration is completed, advance to
the Serial Port Setting as illustrated below in gure 51. Se-
rial port setting is essentially a conguration to allow the
PTZ camera to communicate with the serial port.
To congure Serial Port Setting start by matching the
Port setting with the Serial Port under the Protocol Con-
guration, for example if Serial Port uses COM5, match
the Port by selecting COM5. Set the Baud Rate, Data
bits, Parity, and Stop bits by referencing the PTZ camera
user’s guide. Older PTZ cameras may use 9600 baud rate
or lower, 8 for data bits, none for parity and stop bits may
varies depending on makers and models.
Relative explanations:
Port – COM or communication port. Please match 5.
this COM port to the serial COM port setup under
the protocol conguration.

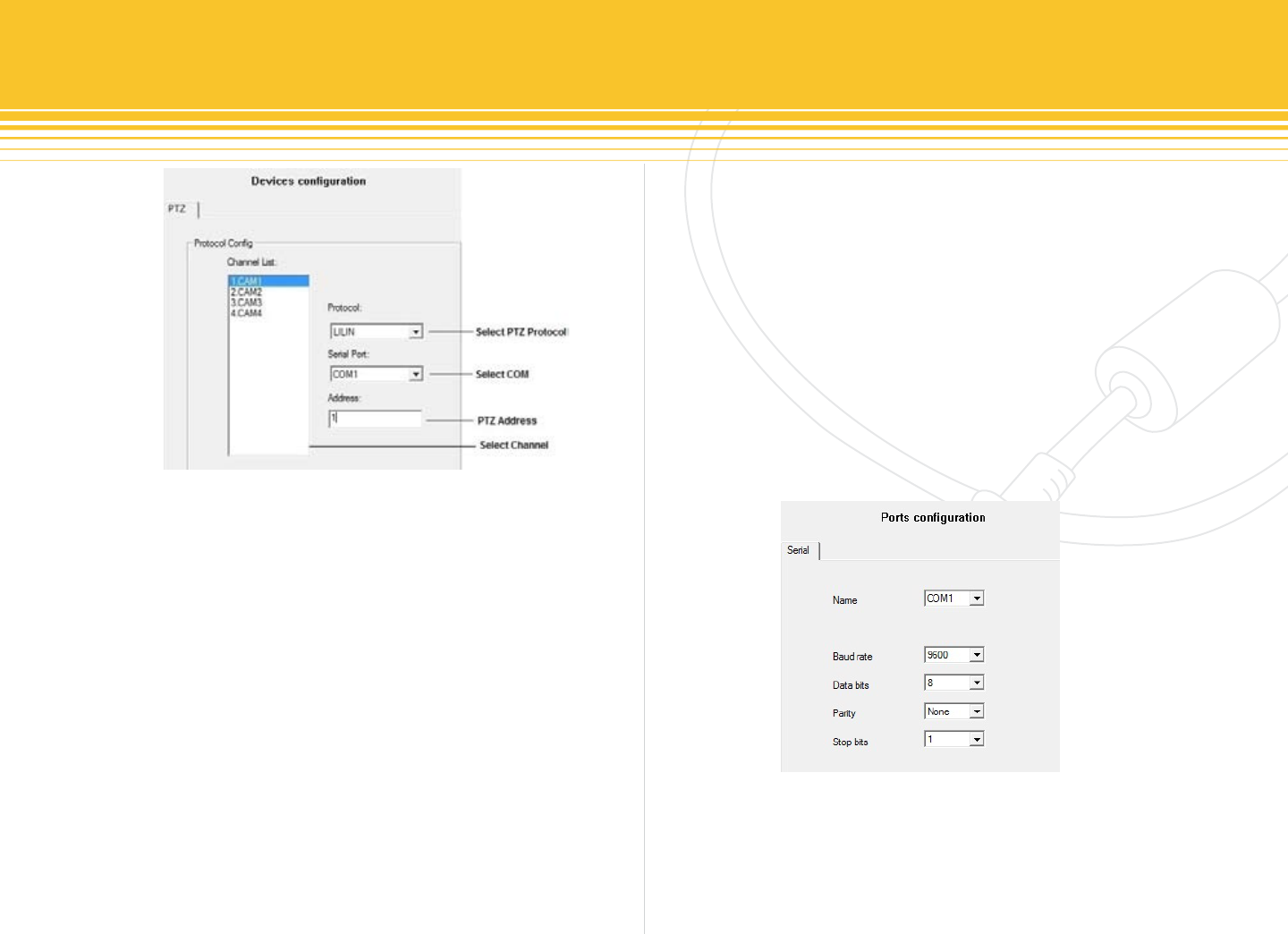

Figure 50 - P.T.Z Protocol Conguration
Figure 51- P.T.Z Serial Port Setting
