Chapter 3: First-Time NT500 Offline System Installation & Setup
3 – 47
Notes
2 Select a specific report from the options listed.
The report details window appears.
3 Select the fields to be included in the report by
highlighting the field name, then clicking the > icon.
4 To include all available fields in the report, select the first
field in the list, then click the > > icon.
5 Click Save.
6 Name the search.
7 To see a preview of the output of a defined report, click
Search.
A report preview appears

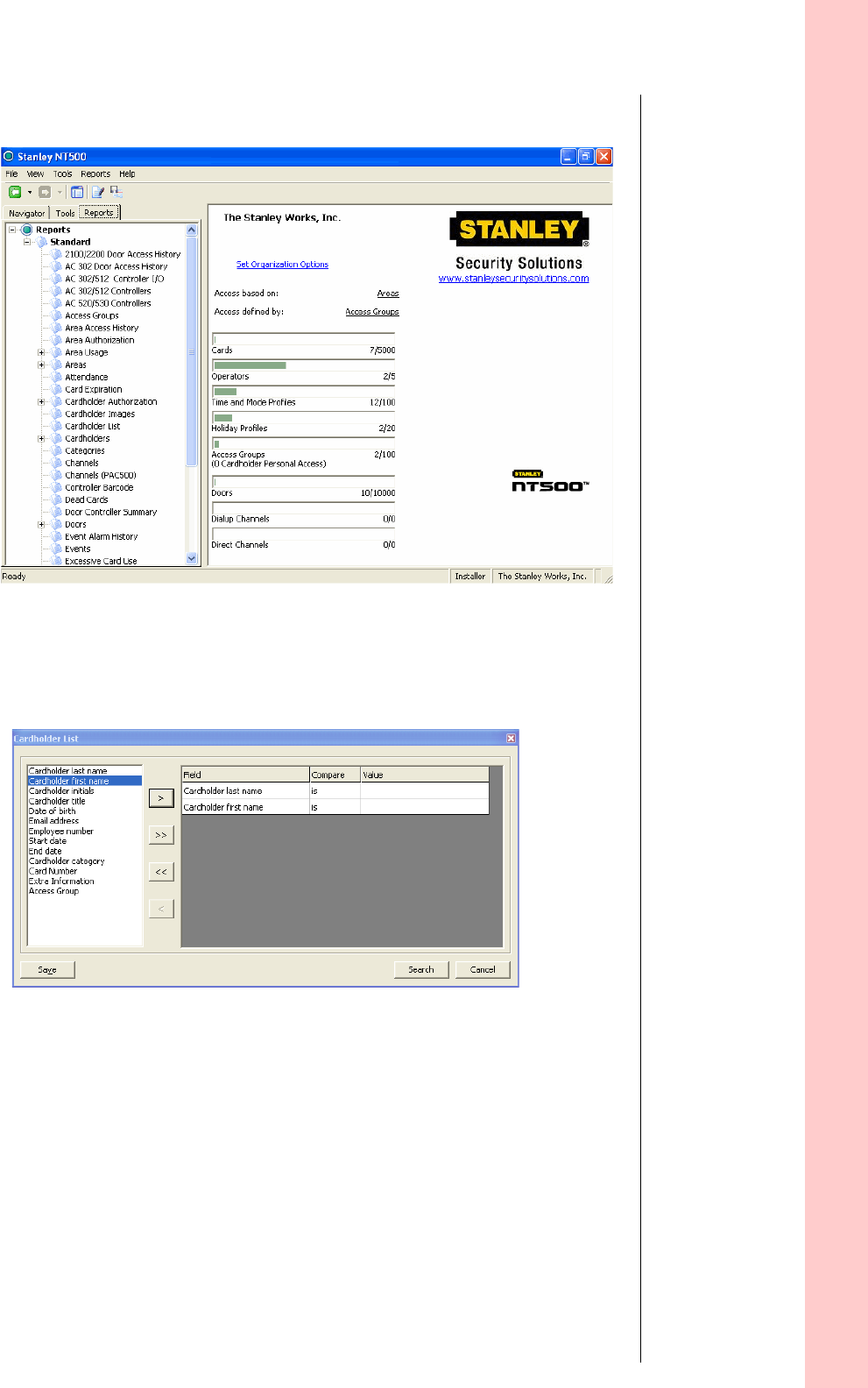

Figure 3.26 Standard reports list
Figure 3.27 Report details window
