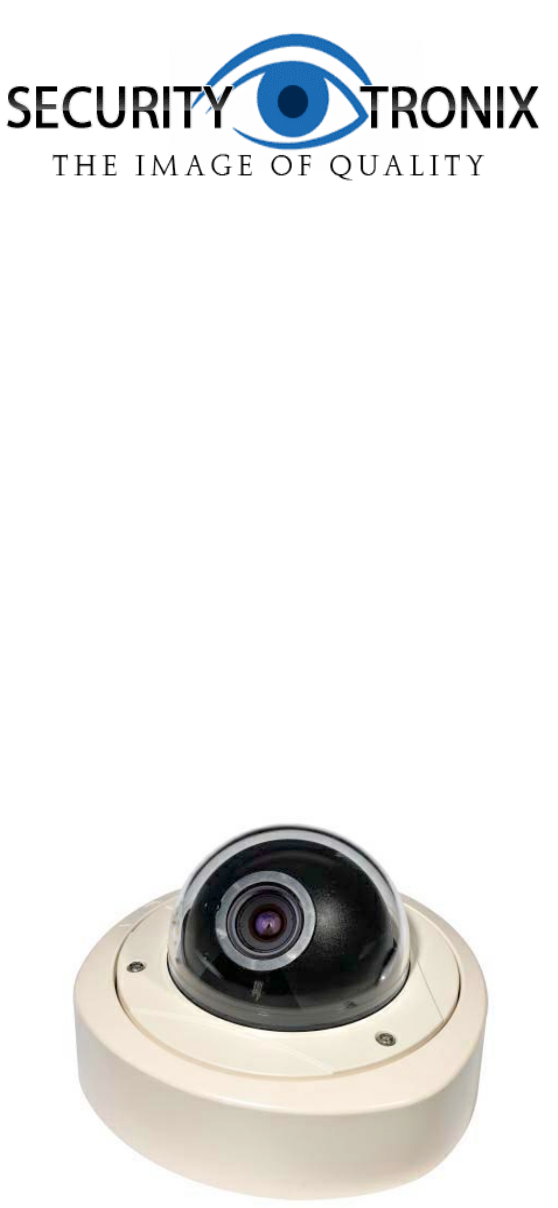

INSTALLATION MANUAL ST-D600DN2812-DSHB Super WDR, 3D DNR True Day & Night Dome Camera with Heater & Blower v1.
PACKAGE CONTENTS This package contains: One ST-D600DN2812-DSHB Super WDR dome color camera with heater and blower One installation manual Mounting hardware and mounting template One side cap Video and external OSD control cable RS485 terminal block Note: The ST-D600DN2812-DSHB requires a minimum 12VDC 150mA (no heater or blower) power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. The camera may also operate at 24VAC 360mA (heater and blower on).
18. Operating Temperature -4F° - 140°F 19. Operating Humidity 30% - 80% 20. Power Supply DC12V 150mA, AC24V 360mA (blower & heater on) 21. Dimensions 7”x4.5” 22. Weight 2.5 lbs. INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions.
. WIRING CONNECTIONS DC Power Wiring AC Power Wiring v1.
To Adjust the Varifocal Lens v1.
5. OSD SETTINGS Accessing and setting the camera functions are done through the camera’s On Screen Display (OSD) via the included Video & External OSD Control Cable. A menu item may be selected my moving the joystick UP, DOWN, LEFT or RIGHT. The selected item may be entered by taping the joystick. Warning: This camera is set for BNC connections at the factory. Do not reset the switch to UTP. v1.
OSD SETTINGS EXPOSURE COLOR DAY&NIGHT FUNCTION MOTION PRIVACY v1.0 1/19/11 LENS E.
SYNC COMMUNICATION SPECIAL EXIT MASK8 RETURN SYNC MODE V-‐PHASE RETURN ADDRESS BAUD RATE PROTOCOL
Weight levels allow a dark area to become brighter. A lower Weight level is selected for a darker condition while higher levels are for increased brightness. 3D-Digital Noise Reduction (DNR) reduces the background noise in a low luminance environment. Upgraded 3D filtering ensures an even more clear image. Per the menu settings: DNR Level High – The image is clearer, but the potential of a ghost image is increased. DNR Level Low – The image is less clear, but the potential for a ghost image is reduced.
