Magnalock Preparation

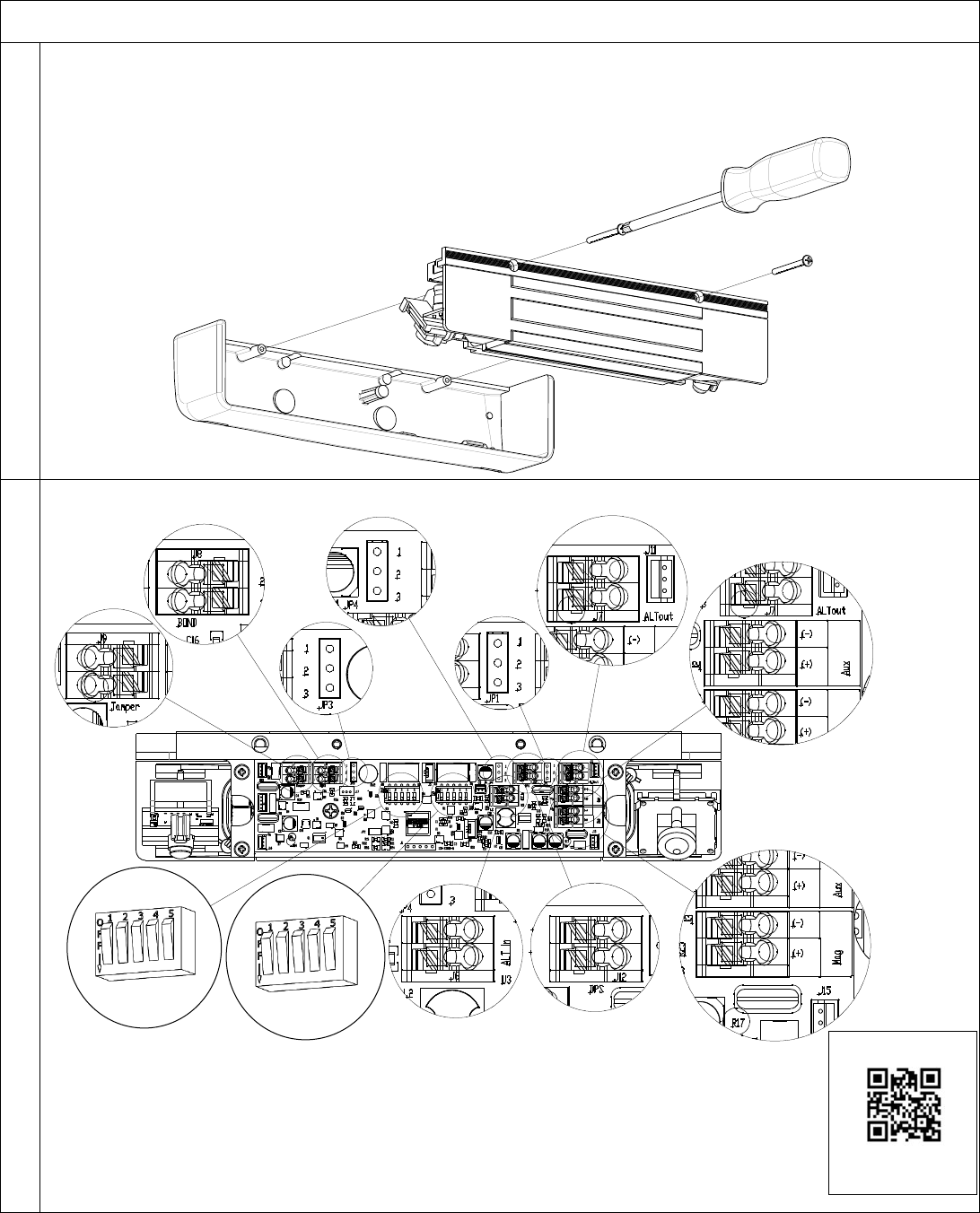

Using a Phillips screwdriver, remove the two (2) screws securing the cover as shown.

Remove the cover to provide access to the circuit board on the back of the magnet.

The screws should be saved to re-attach the cover later.

Component Locations

SW1

Quick Clip 1:

BDCX

Configuration

SW3

JP3

JP1

JP4

J12
