Connecting wired zones:
The TAKRF determines the presence and status of each zone based on the zones loop
resistance. Each wired zone is supplied with a 5.1K Ohm resistor installed. Before using the
prewired zone, close all the contacts in the zone and confirm that the zone resistance is
between 2.2k and 6k Ohms.
1. Remove AC power from the existing wired panel
2. Remove leads from battery on existing wired panel
3. With power removed, disconnect the hardwired zones from the existing panel.
4. Remove the supplied resistor from the zone(s) connector to be used.

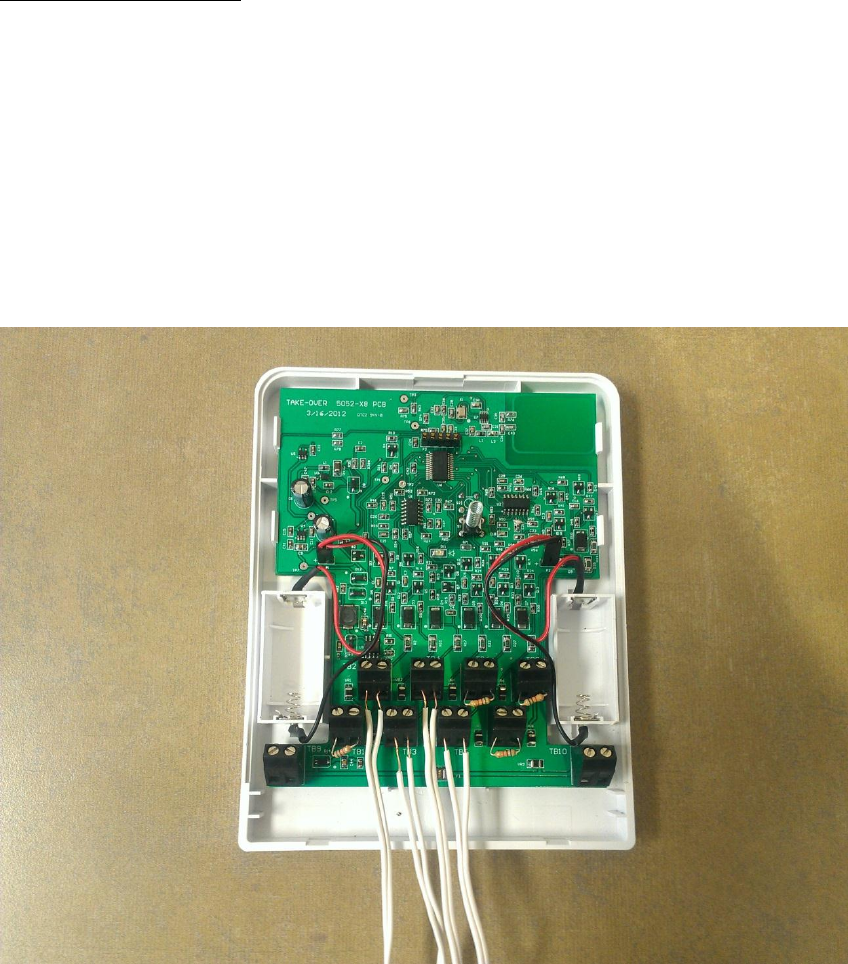

5. Each hardwired zone wire pair goes to a pair of connectors TB1 – TB8 on the TAKRF.
