Installation Guide

4
200478-03
Black to black
White to white
Recommended Grounding Method
Use a green ground “pigtail” (not provided) and twist
one end together with the bare xture wire and the box
ground wire. Secure with a wire connector. Secure the
other end of the “pigtail” with the GND screw on the
mounting plate.
Connect the xture wires to the wires in the junction box.
Twist the wires together and secure with wire connectors.
If you have a metal junction box, you may not need the green
“pigtail”. If you are unsure about the grounding method,
consult your local building code.

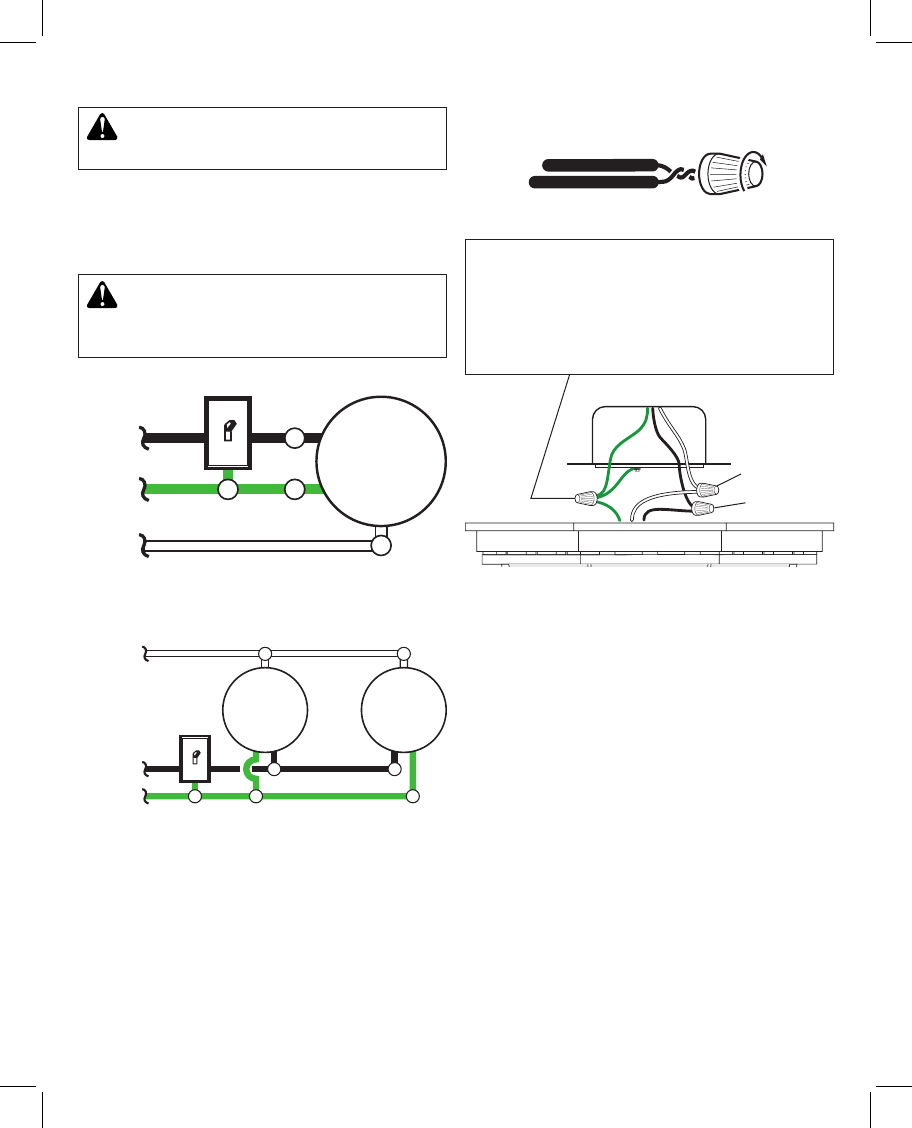

WIRING THE LIGHT FIXTURE
CAUTION: DO NOT connect the RED wire
unless you want to control other lights from the
motion sensor (see Optional Wiring).
Note: All wiring must be run in accordance with the Na-
tional Electrical Code through conduit or another accept-
able means. Contact a qualied electrician if there is any
question as to the suitability of the system.
WARNING: Turn power o at circuit breaker
or fuse.
One Motion Light
Two Motion Lights
Black
White
Green
or Bare
Copper
Green
or Bare
Copper
Light
Fixture
Black
White
Light
Fixture
Light
Fixture
