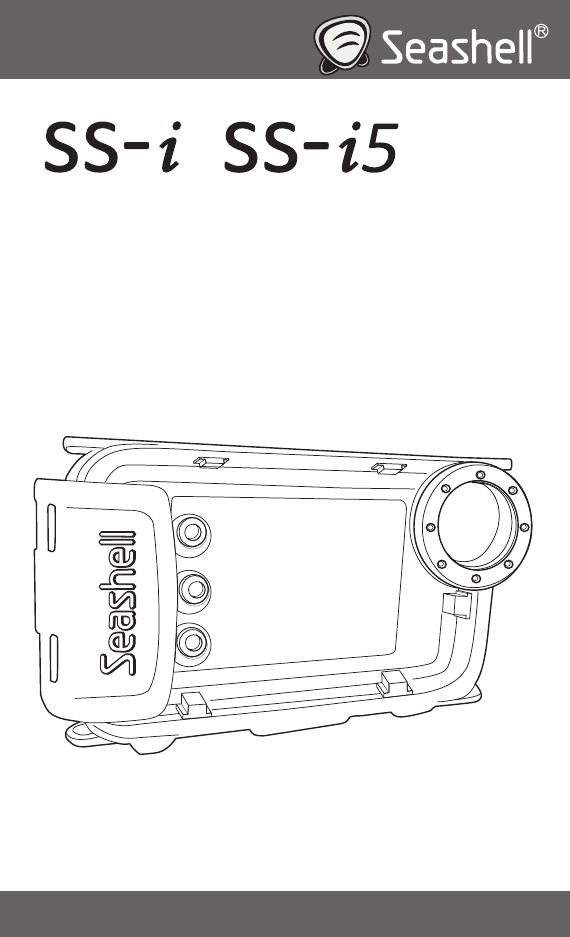

/ iPhone* Marine Photo Pack iPhone* 用防水フォトハウジング iPhone* 방수 카메라 하우징 iPhone* 防水攝影套裝 Custodia impermeabile per foto iPhone* Cuerpo de cámara submarina para iPhone* Boîtier photo étanche pour iPhone* iPhone* Unterwasser-Photo-Gehäuse User Manual ユーザーマニアル 사용자 매뉴얼 使用手冊 # Manuale d’uso Manual de usuario Manuel de l’utilisateur Bedienungsanleitung The copyright of the trademark “iPhone” is held by Apple Inc.. www.seashell.
English CONTENTS 1. 1.1. 1.2. 1.3. 1.4. INFORMATION Introduction................................................................... Disclaimer..................................................................... Components.................................................................. Unpacking..................................................................... 2 2 2 3 2. 2.1. 2.2. 2.3. 2.4. 2.5. 2.6. 2.7. 2.8. 2.9. 2.10. 2.11. 2.12. 2.13. 2.14. USING SEASHELL Attention.............................
1. INFORMATION 1.1. Introduction Thank you for purchasing Seashell waterproof photo housing for iPhone. Seashell is the world’s first waterproof housing specifically designed for underwater photography with iPhone. The versatile Seashell can be used at beach, pool, for scuba, snorkeling, swimming and many outdoor activities. It can operate down to a 131 feet (40 meters) depth. Seashell is pre-configured with iPhone without an iPhone jacket.
A Spacer B D Lock Hinge Back Foam Cushion Side Spacer O-Ring Grease Strap Mount Lens Window Lens Ring Display Hood Lock Button C B A-D Buttons A D Tripod Mount Hinge 1.4. Unpacking Seashell waterproof housing is sold as part of package. Please ensure receipt of all necessary items for proper use. Your purchase should include: Seashell housing Front cushion set Hand strap Manual with warranty card 1MM Side cushion set 2MM 3MM 4MM 5MM O-ring Quick setup guide O-ring grease 2.
f. Do not attempt to make any alteration to the Seashell housing as it may affect its waterproof performance. g. Do not apply excessive force to the Seashell housing, or to the controls, as this may cause damage. h. Backup the data in your iPhone before use to avoid any potential loss of data. In case a large temperature difference, condensation may occur in the seashell housing, place a small bag of dry bead into the housing if necessary. 2.2. Setting up Seashell housing a.
g. Refer to the section in this manual for O-ring maintenance if leak presents. h. Contact Zear Corporation Ltd Customer service at info@seashell.hk if you need assistance. 2.4. Preparation of iPhone 4 a. Make settings and check your iPhone in a dry and clean location. b. Set iPhone to Airplane mode and switch off all alarms and notifications to avoid incoming call or alarms during the camera mode operation. c. Lock Portrait Orientation. d. Set Auto-Lock to ”Never”. e.
2.6. Unloading iPhone from Seashell housing a. Rinse the Seashell housing with tap water thoroughly while the iPhone is still inside the Seashell housing b. Completely dry the Seashell housing with cloth or paper towel. c. Open the Seashell housing by lifting the sliding knob at the lock. d. Unload the iPhone from the housing. e. If the housing is difficult to open, swing the lock all the way to the rear housing. The tag at the lock can push against the front housing and make the housing easier to separate.
2.9. Maintenance of small O-rings of the press buttons 油 rica nt 劑 潤滑 Lub 潤滑 a. Press the button all the way down. b. Use the blunt end of a toothpick to apply a small amount of O-ring grease to the junction of the press button shaft and the rear housing c. Press the button a few times and the lubricant grease will be transferred to the small O-ring d. Repeat the same for all other buttons. 2.10. Maintenance of Seashell housing a.
2.13. Photographing a. Press the button to activate the camera function b. To take a picture, or to take a video set the switch between still picture and video. You may also review with the corresponding buttons. c. Press home key if camera is not used to conserve battery charge. 2.14. Storage a. Store the Seashell housing in a clean, cool and dry place away from direct sunlight. b. Store the Seashell housing away from strong solvents or other chemicals. c.
Copyright 2014 Zear Corporation Limited Seashell is a registered trademark of Zear Corporation Limited www.seashell.
