48 Medalist Pro Installation Guide, Rev. B
W drives
Terminating the drive
“W” model drives are terminated with permanently mounted IC
active terminators. If you install one of these drives and it is not
on the end of the SCSI bus, disable the terminators by removing
the jumper
“TE”
from pins 15 and 16 of connector J2. If you
install the drive on the end of the SCSI bus, enable termination
by installing a jumper on pins 15 and 16 of connector J2 (see
Figure 13).
Note.
Use active (ANSI SCSI-2 Alternative 2) terminators when
terminating the bus.

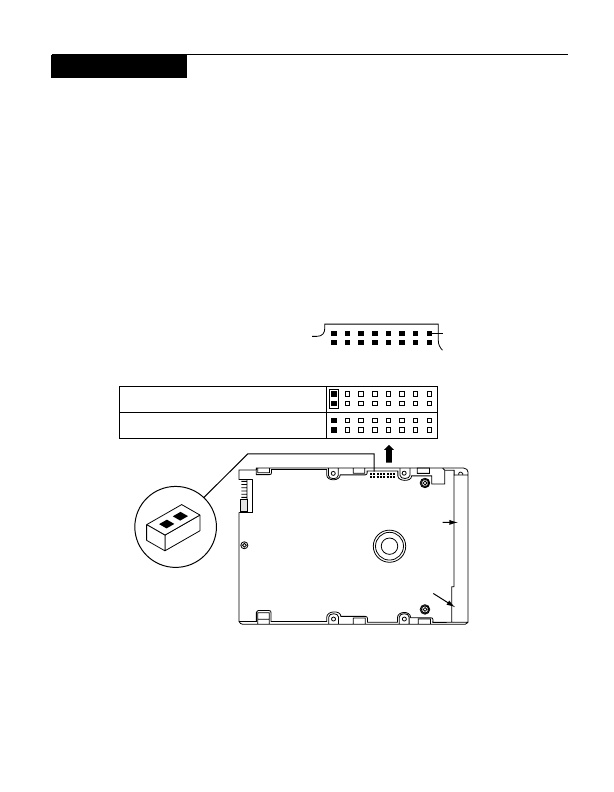

Figure 13. Terminating the drive
*Disable SCSI terminator
*“W” model only
*Enable SCSI terminator (default)
T
E
D
S
M
E
W
P
P
D
R
E
S
T
P
T
P
SCSI I/O
Connector
DC Power
Connector
J2
Drive
Front
J6
J1
J2 Jumper Type
(enlarged to
show detail)
Pin 1
J2
