42 Medalist Pro Installation Guide, Rev. B
N drives
Setting the SCSI ID jumpers
Use the J6 connector to set the SCSI ID (see Figure 7). To
change the SCSI ID, install jumpers on the appropriate pins as
shown in the illustration.

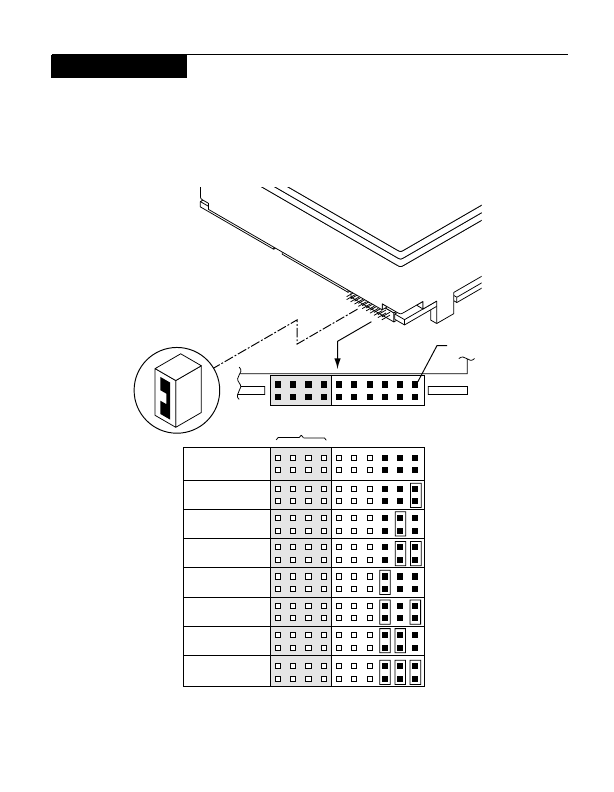

Figure 7. Setting the SCSI ID on model N drives
A
2
A
1
A
0
SCSI ID = 0
SCSI ID = 1
SCSI ID = 2
SCSI ID = 3
SCSI ID = 4
SCSI ID = 5
SCSI ID = 6
SCSI ID = 7
Reserved
L
E
D
R
E
S
R
E
S
Jumper Plug
(enlarged to
show detail)
J6
Drive
Front
Pin 1
(default)
