Cheetah NS 10K.2 FC Product Manual, Rev. B 37

6.5 Mechanical specifications

Refer to Figure 9 for detailed physical dimensions. See Section 8.4, “Drive mounting.”

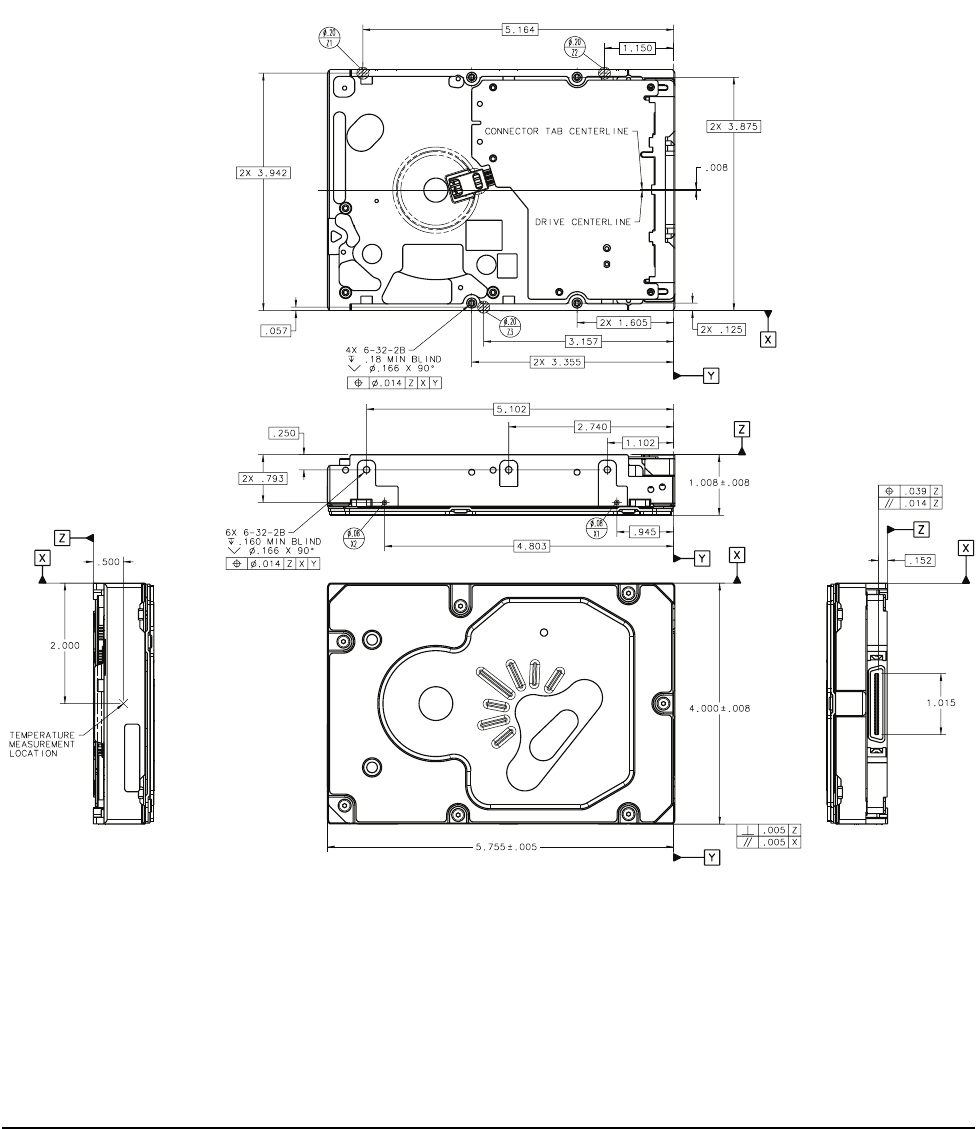

Figure 9. Mounting configuration dimensions

Height (max): 1.013 in 25.73 mm

Width (max): 3.999 in 101.57 mm

Depth (max): 5.769 in 146.53 mm

Weight (max): 1.482 pounds 0.672 kilograms
