Safety - 2

SAFETY

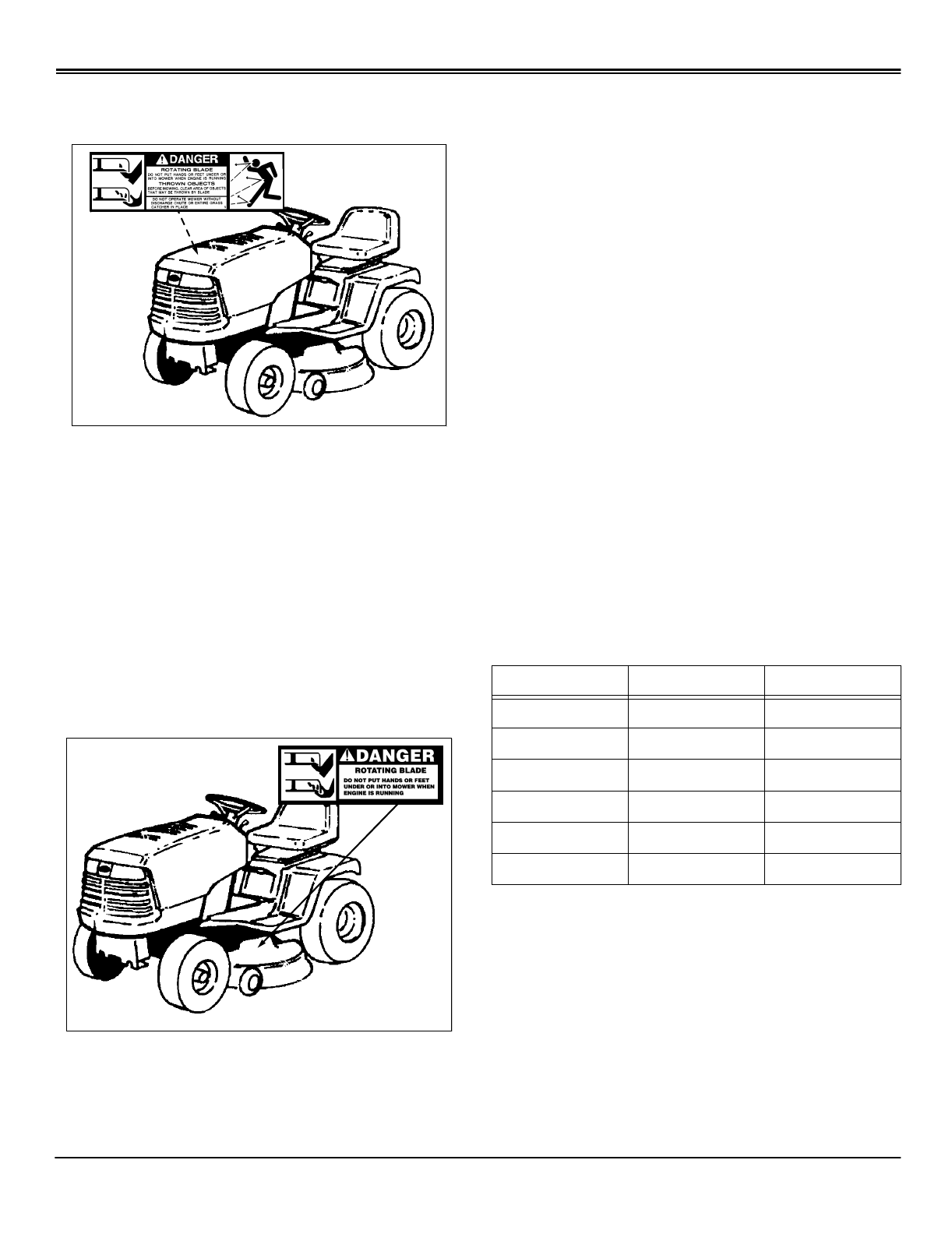

DANGER: ROTATING BLADE-THROWN

OBJECTS

Picture Note: Located on Right-Hand side of deck

• Rotating blades.

• Do not put hands or feet under or into mower when

engine is running.

• Thrown objects.

• Before mowing, clear area of objects that may be thrown

by blade.

• Do not operate mower without discharge chute or entire

grass catcher in place.

DANGER: ROTATING BLADE

Picture Note: Located on Left-Hand side of deck

• Do not put hands or feet under or into mower when

engine is running.

Emission Control System Certification Label

NOTE: Tampering with emission controls and

components by unauthorized personnel may result in

severe fines or penalties. Emission controls and

components can only be adjusted by EPA and/or CARB

authorized service centers. Contact your John Deere

Commercial and Consumer Equipment Retailer

concerning emission controls and component

questions.

The presence of an emissions label signifies that the

engine has been certified with the United States

Environmental Protection Agency (EPA) and/or California

Air Resources Board (CARB).

The emissions warranty applies only to those engines

marketed by John Deere that have been certified by the

EPA and/or CARB; and used in the United States and

Canada in off-road mobile equipment.

Emission Compliance Period

If your engine has the emission compliance category listed

on the emission control system certification or air index

label, this indicates the number of operating hours for which

the engine has been certified to meet EPA and/or CARB

emission requirements. The following table provides the

engine compliance period in hours associated with the

category found on the certification label.

Certification

Your mower has been certified by an independent

laboratory for compliance with American National Standard

B-71.1, “Safety Specifications” for Power Lawn Mowers,

Lawn and Garden Tractors, and Lawn Tractors.

M96445

Agency Category Hours

EPA C 250

EPA B 500

EPA A 1000

CARB Moderate 125

CARB Intermediate 250

CARB Extended 500
