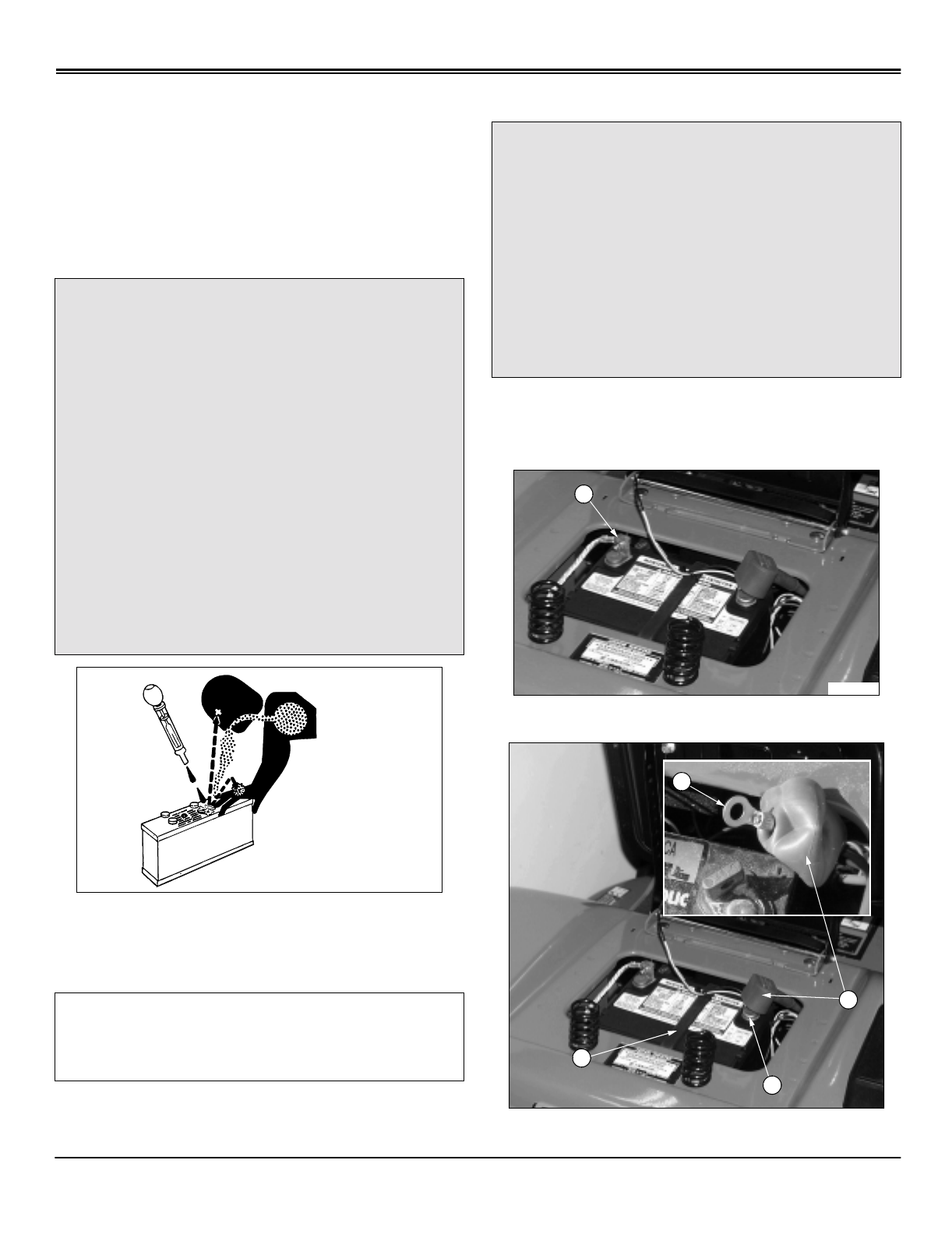

SERVICE ELECTRICAL

Service Electrical

WARNING:

Battery posts, terminals and related

accessories contain lead and lead components, chemicals

known to the State of California to cause cancer and

reproductive harm.

Wash hands after handling.

Checking the Battery

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

•Recharge, if necessary, at 6–10 amperes for 1 hour.

Removing and Installing the Battery

Removing:

1. Park machine safely, (See Parking Safely in the Safety

Section), and lift seat.

2. Disconnect negative (–) battery cable (A).

3. Pull back the red terminal cover (B) and disconnect

CAUTION: Avoid injury! DO NOT attempt to

open, add fluid or service battery. Any attempt

to do so will void warranty and lead to possible

injury.

Battery electrolyte contains sulfuric acid. It is

poisonous and can cause serious burns:

• Wear eye protection and gloves.

• Keep skin protected.

• If electrolyte is swallowed, get medical

attention immediately.

• If electrolyte is splashed into eyes, flush

immediately with water for 15-30 minutes and

get medical attention.

• If electrolyte is splashed onto skin, flush

immediately with water and get medical

attention if necessary.

IMPORTANT: Avoid damage! This battery comes

fully charged. If the mower is not used by the

Service Expiration Date indicated on the battery,

charge the battery.

CAUTION: Avoid injury! The battery produces

a flammable and explosive gas. The battery

may explode:

• DO NOT smoke near battery.

• Wear eye protection and gloves.

• DO NOT allow direct metal contact across

battery posts.

• Remove negative cable first when

disconnecting.

• Install negative cable last when connecting.

M96453
