Service Mower - 36

SERVICE MOWER

4. Inspect belt for wear or damage; replace as necessary.

5. Install belt in reverse order of removal.

6. Reinstall belt guard(s) and tighten capscrews securely.

7. Install mower deck and adjust mower belt tension, if

necessary.

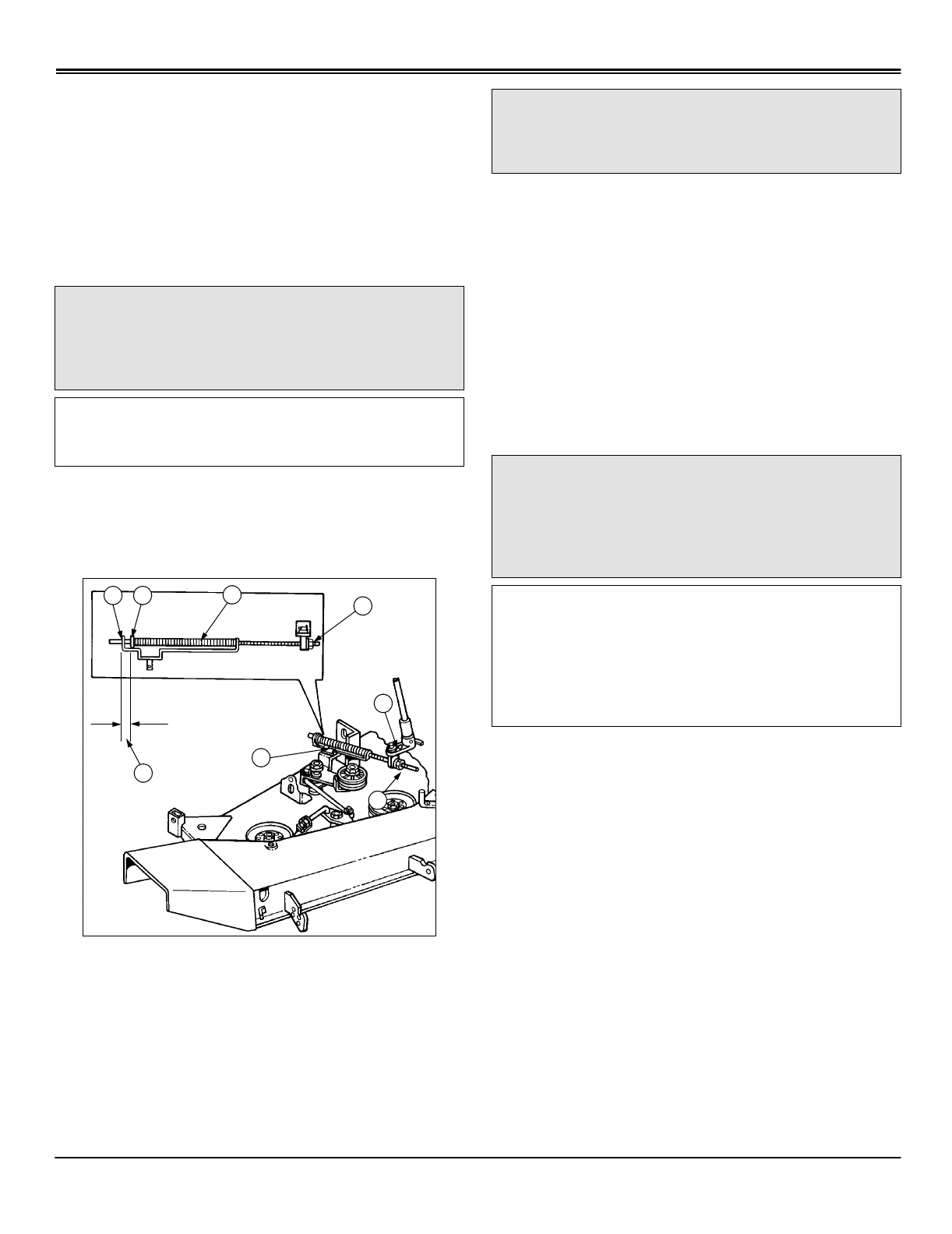

Adjusting Mower Belt Tension

1. Park machine safely. (See Parking Safely in the Safety

Section.)

2. Place mower deck in lowest setting.

3. Engage PTO drive lever.

4. Measure distance from bracket (A) to washer (B) on

tension rod (C).

• Distance (D) should be: 20 - 25 mm (0.78 - 0.98 in)

5. Continue with the following steps, if adjustment is

required.

6. Disengage PTO lever.

7. Remove spring locking pin and washer (E) and

disconnect tension rod from blade drive arm.

8. Loosen lock nut (F).

9. Turn fitting on tension rod clockwise to shorten and

counterclockwise to lengthen effective rod length.

10.Tighten lock nut (F) to 27 N•m (20 lb-ft.).

11.Assemble tension rod and recheck dimension (D).

12.Check spindle brake clearance.

Adjusting Spindle Brake

1. Park machine safely. (See Parking Safely in the Safety

Section.)

2. Place mower deck in lowest setting.

3. Engage PTO drive lever.

4. Check mower belt tension and adjust, if necessary.

5. Remove belt guard.

CAUTION: Avoid injury! Rotating blades are

dangerous. Stop engine, remove key, wait for

all moving parts to stop before servicing

machine.

IMPORTANT: Avoid damage! Spindle brake

engagement must be checked every time the mower

belt tension is adjusted or belt damage may occur.

CAUTION: Avoid injury! Spring is under

tension. Do not remove tensioning spring when

adjusting mower belt tension.

CAUTION: Avoid injury! Rotating blades are

dangerous. Mower blades must stop within 5

seconds after mower is turned off. Check

spindle brake measurement every 25 hours or

once a year (whichever comes first).

IMPORTANT: Avoid damage! Avoid belt damage.

Spindle brake engagement must be checked and

corrected every time the mower belt tension is

adjusted.

Mower belt tension should be adjusted, if required,

BEFORE brakes are adjusted.
