Service Mower - 35
SERVICE MOWER

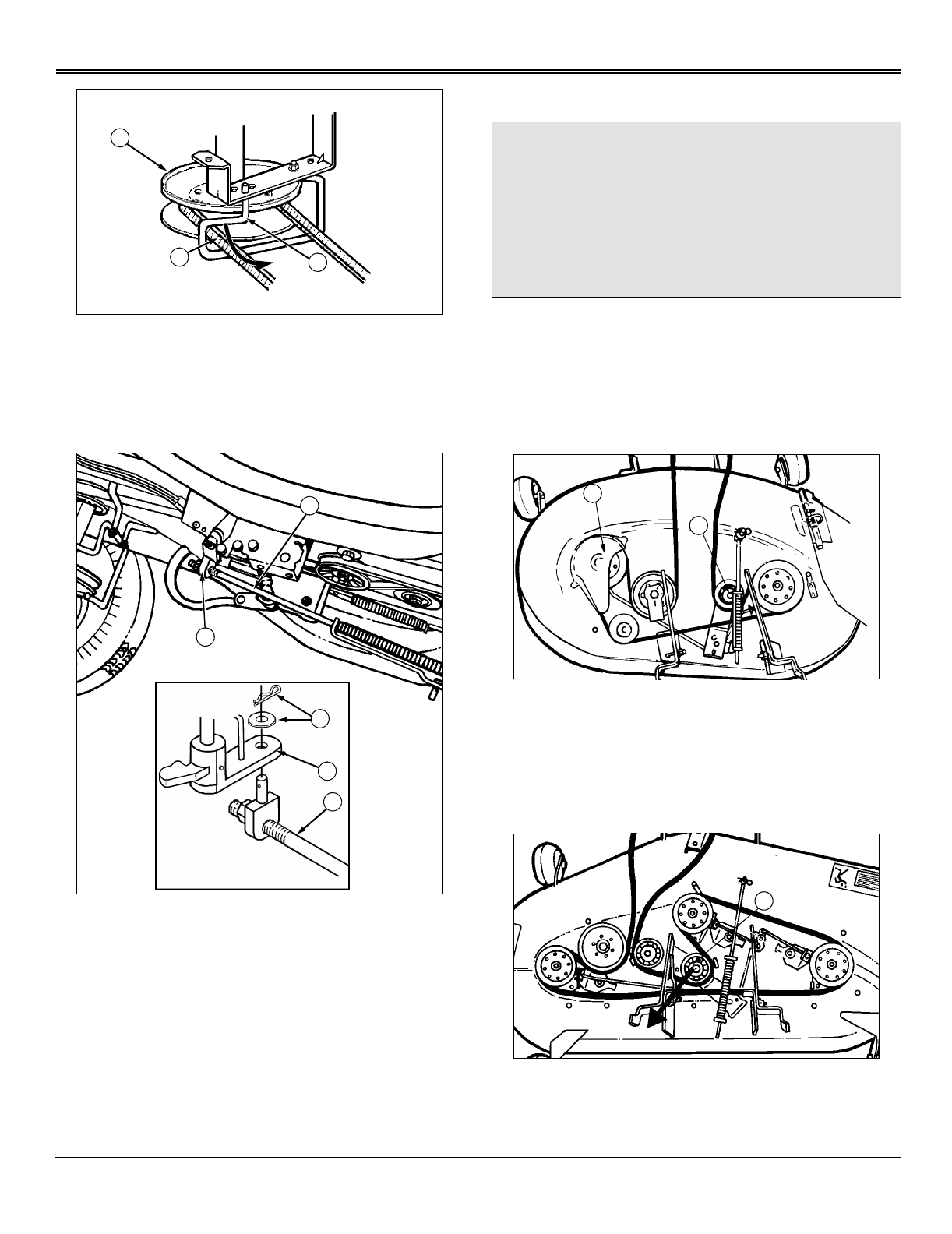

Picture Note: Shown from behind L.H. front wheel.
11.Pull down on left-hand side of belt guide (K) and rotate
away from engine pulley (L). Install belt (M) through belt
guide and onto pulley. Return guide to original position.
Insure that the guide is seated into the hole.
12.Raise tension rod (N) and attach to blade drive arm (O)
using flat washer and spring locking pin (P).
13.Raise deck by pressing the lift lever lock and pulling the
mower deck lift lever to its highest point.
14.Remove wood blocks from under deck.
15.Check for proper routing and position of all belts.
16.Level mower.
Replacing Mower Drive Belt
1. Park machine safely. (See Parking Safely in Safety
Section.) Disengage mower blades and wait for all moving
parts to stop.
2. Remove mower deck.
3. Remove drive belt.
42-Inch Mower Deck:
a. Remove two capscrews and belt guard (A).
b. Loosen pulley (B) and move pulley to the right.
c. Remove mower belt.
46-Inch Mower Deck:
a. Remove six capscrews and left and right belt guards.
b. Pull pulley (A) to the left and remove mower drive belt
from engine pulley.
c. Remove mower belt.
K
M
L
N
N
O
P
O
c
CAUTION: Avoid injury! Rotating blades are
dangerous. Before adjusting or servicing
mower:
• Disconnect spark plug wire(s) to prevent
engine from starting accidently.
• Always wear gloves when handling mower
blades or working near blades.
A
B
A
