Operator`s manual

Service Mower - 34
SERVICE MOWER
8. Remove spring locking pins and rear draft pins (I), one
on each side, from rear draft brackets (J).
9. Move lift lever to the highest position.
10.Slide mower out from under the tractor.
Installing Mower
1. Park machine safely. (See Parking Safely in Safety
Section.)
2. Put lift lever in highest position.
3. Slide mower under tractor.
4. Put lift lever in lowest position.

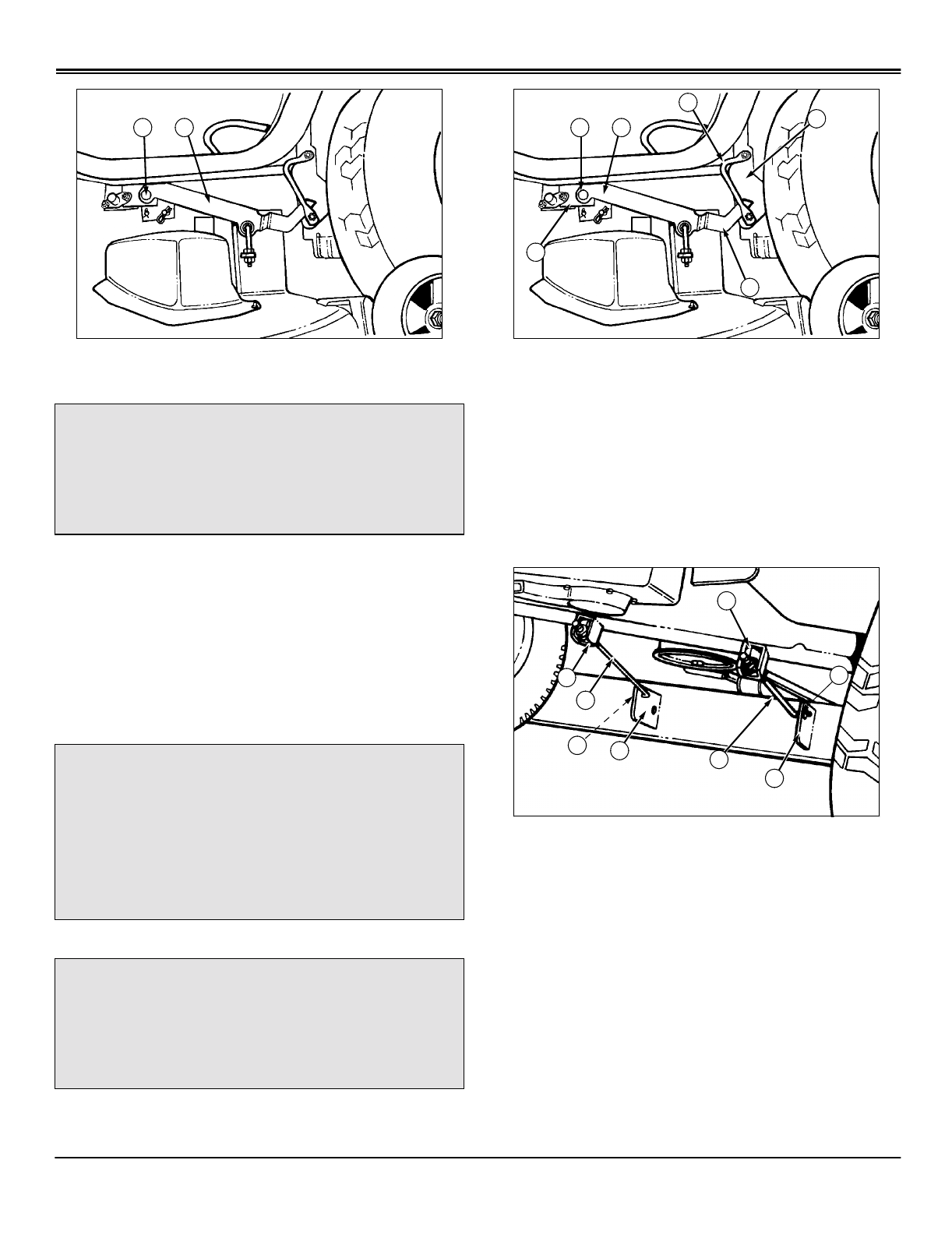

Picture Note: Left side of tractor shown.
5. Position the deck so the rear draft arms (A) are between
the guide rods (B) and the lift arms (C).
6. Lift the mower deck. Place wood blocks under each side
of mower deck and align the holes in the front of the rear
draft brackets (D) with the holes in the frame bracket (E).
7. Insert rear draft pins (F) through rear draft arms and
frame bracket from the outboard side. Secure with spring
locking pins.
Picture Note: Front of left hand front wheel shown.
8. Insert angled end of front draft rod assemblies (G)
through holes in front axle brackets (H).
NOTE: The draft rod assemblies are inserted from the
inside of the mower deck brackets toward the outside
of the bracket.
9. Raise front of deck and block. Insert angled end of front
draft rods into forward holes on the front brackets (I) of the
mower deck.
10.Secure each draft rod with flat washer and spring
locking pin (J).
c
CAUTION: Avoid injury! Lift lever is under
tension and can snap back when deck is
removed.
Hold lift lever tightly when releasing from lock
(lower) position.
c
CAUTION: Avoid injury! Rotating blades are
dangerous. Before adjusting or servicing
mower:
• Disconnect spark plug wire(s) to prevent
engine from starting accidently.
• Always wear gloves when handling mower
blades or working near blades.
c
CAUTION: Avoid injury! Lift lever is under
tension and can snap back when deck is
removed.
Hold lift lever tightly when releasing from lock
(lower) position.
J I
D
E
F
A
B
C
G
G
H
H
I
I
J
J
