Operating - 18

OPERATING

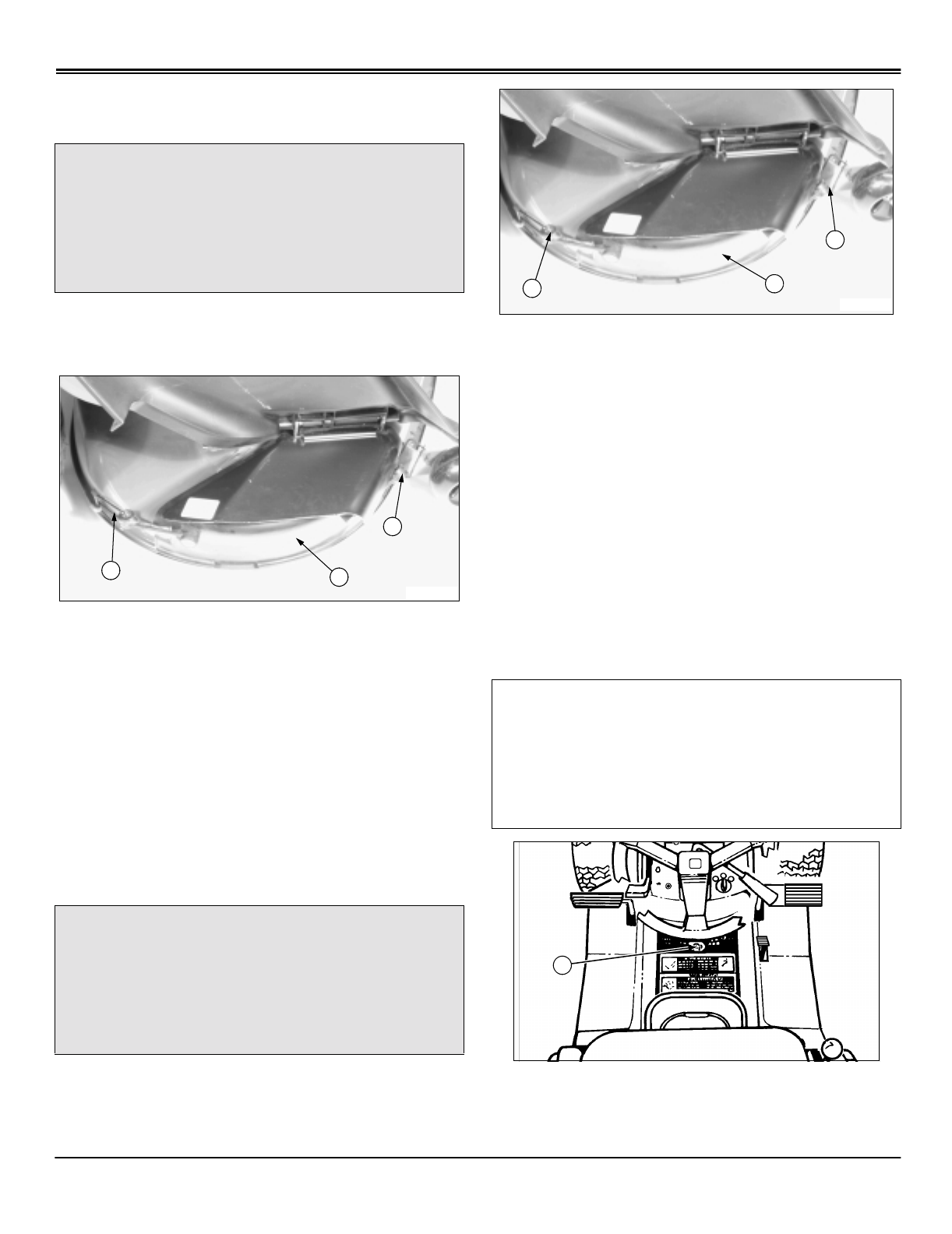

Using Mower Deck Mulch Ready (42-Inch

Mower Deck)

NOTE: For maximum mulching operation, it may be

necessary to change the mower blades, see Servicing

Mower Blades in the SERVICE MOWER section.

To set-up and operate the 42” deck for mulching operation

the factory installed mulch cover (A) must be installed.

1. Install mulch cover:

• Lift plastic discharge chute.

• Grasp corner of steel chute, pull outward to unlock

and pivot up.

• Install mulch cover into deck discharge opening and

hook both rubber hooks (B).

Using Mower Deck with Optional Equipment

(42-Inch Mower Deck)

NOTE: For maximum mower deck operation, it may be

necessary to change the mower blades, see Servicing

Mower Blades in the SERVICE MOWER section.

To set-up and operate the 42” deck for either the 2-Bag

Bagger or Mulch Plug Kit the factory installed mulch cover

(A) must be removed.

1. Remove mulch cover:

• Lift plastic discharge chute.

• Grasp corner of steel chute, pull outward to unlock

and pivot up.

• Unhook both rubber hooks (B) and remove mulch

cover.

2. Store mulch cover in a well protected area and have it

readily available for when you want to use deck as a

standard mulching deck.

Pushing Machine

1. Unlock the park brake (A).

2. Put transmission in N (neutral).

CAUTION: Avoid injury! Before you adjust

mower: STOP engine, remove key, and wait for

blades to STOP.

Be careful, sharp edges on mower blades.

Always wear gloves when handling mower

blades.

CAUTION: Avoid injury! Before you adjust

mower: STOP engine, remove key, and wait for

blades to STOP.

Be careful, sharp edges on mower blades.

Always wear gloves when handling mower

blades.

M96105

IMPORTANT: Avoid damage! Transmission damage

may occur if the machine is moved or towed

incorrectly:

• Move unit by hand only.

• DO NOT use another vehicle to move unit.

• DO NOT tow unit.

M96105
