Operating - 17

OPERATING

3. Release locking lever lock (B) to keep lift lever (A) in

position.

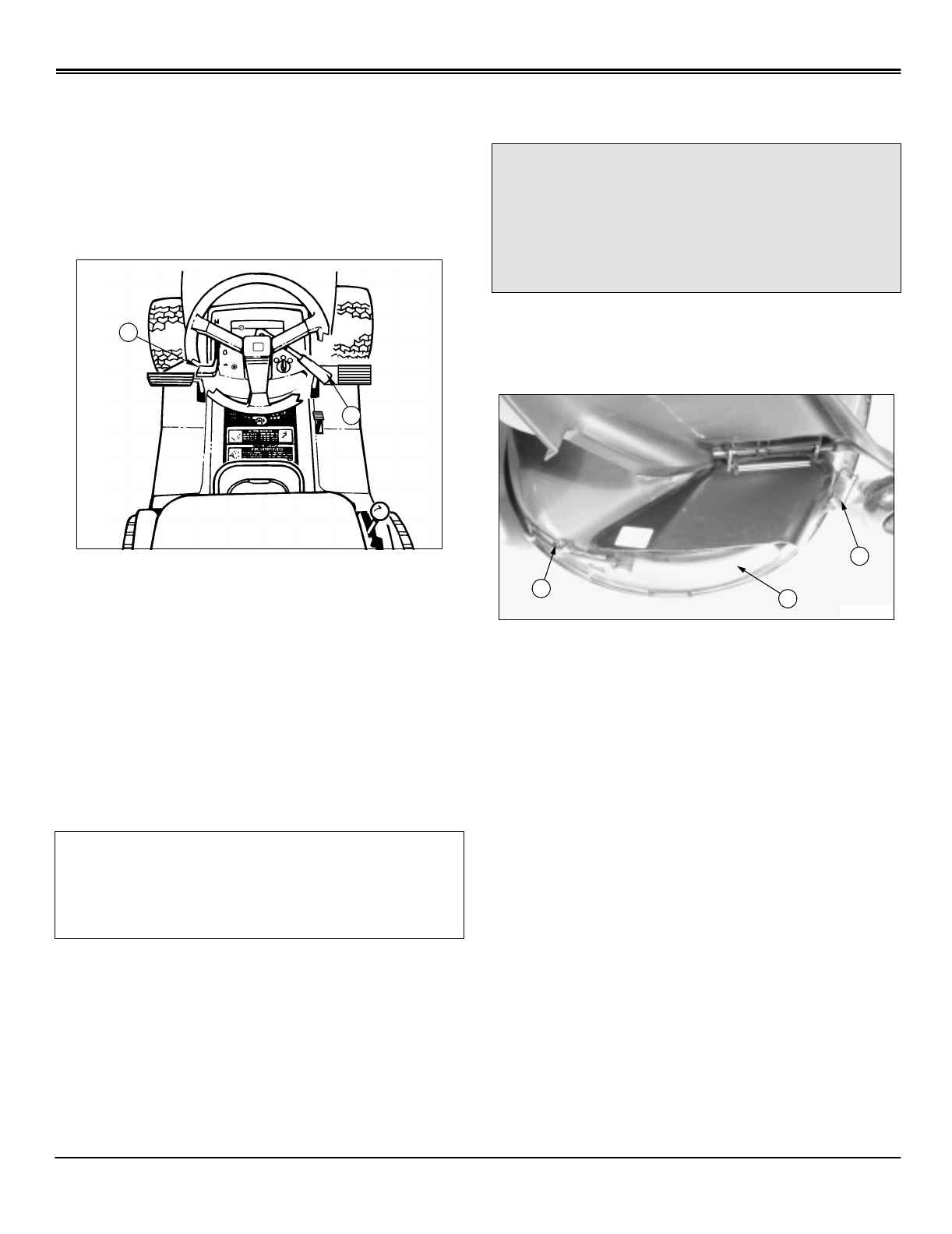

Using Mower

1. Start engine and allow it to idle for two to three minutes.

2. Lower mower to cutting height.

3. Push throttle lever (A) up to the full throttle (

) position.

4. Push mower engagement lever (B) forward to start

mower.

5. Pull lever (B) back to stop mower blades.

Mower Blade Selection

• Standard Blades: Designed for bagging, side

discharging, and all mowing conditions.

• Bagging Blades: Designed for cutting and bagging thick,

tall grass and/or leaves.

• Mulching Blades: Must be used only with the Mulch

Plug. See your John Deere dealer.

Using Mower Deck Side Discharge (42-Inch

Mower Deck)

NOTE: For maximum side discharge operation, it may

be necessary to change the mower blades, see

Servicing Mower Blades in the SERVICE MOWER

section.

To set-up and operate the 42” deck for side discharge

operation the factory installed mulch cover (A) must be

removed.

1. Remove mulch cover:

• Lift plastic discharge chute.

• Grasp corner of steel chute, pull outward to unlock

and pivot up.

• Unhook both rubber hooks (B) and remove mulch

cover.

2. Store mulch cover in a well protected area and have it

readily available for when you want to use deck as a

mulching deck.

IMPORTANT: Avoid damage! Blades that are not

specifically used for mulching, will destroy the

mulch plug and may damage the tractor and mower

deck. Mulching blades must be used with the mulch

plug insert.

CAUTION: Avoid injury! Before you adjust

mower: STOP engine, remove key, and wait for

blades to STOP.

Be careful, sharp edges on mower blades.

Always wear gloves when handling mower

blades.

M96105
