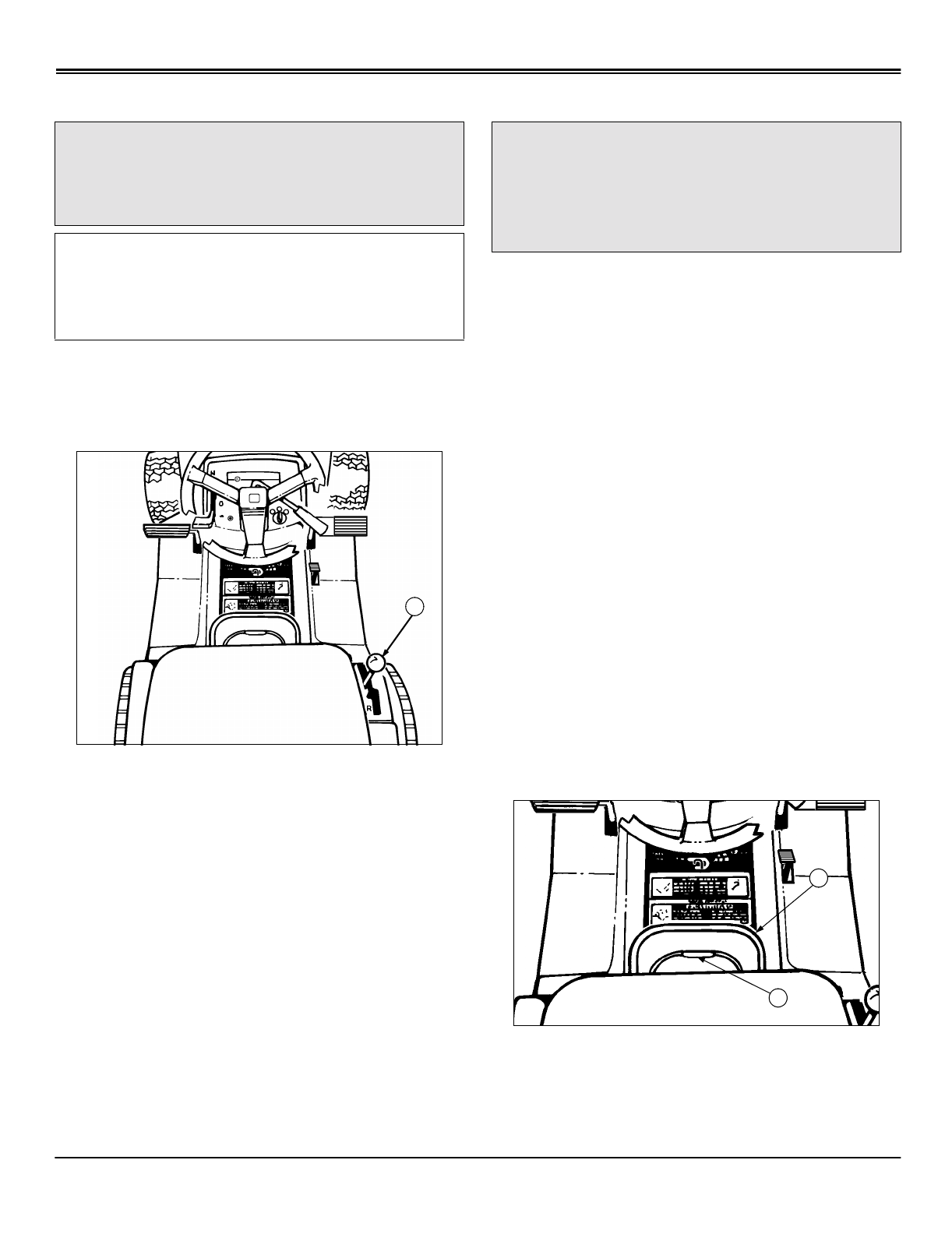

Operating - 16

OPERATING

Using Cruise Control

Use cruise control when you want to maintain travel speed

without having to hold the forward travel pedal down.

Cruise control operates only for forward travel.

Engage cruise control:

1. Put the cruise control lever (A) in the off position.

2. Move cruise control lever forward.

• Move cruise control lever toward the (

) position to

begin forward travel.

• Increase tractor speed by moving the cruise control

lever toward the (

) position.

• Select desired speed and release lever.

Disengage cruise control:

1. Depress brake pedal or put cruise control lever in the off

position

Using The Reverse Implement Option (RIO)

NOTE: Backing up while the mower is engaged is

strongly discouraged. The Reverse Implement Option

should be used ONLY when operating another

attachment or when the operator deems it necessary to

reposition the machine with the mower engaged.

1. Stop forward travel.

2. Look behind the vehicle to be sure there are no

bystanders.

3. Push and hold in the reverse implement switch (A) while

depressing reverse foot pedal slightly for Automatic

Transmission OR moving the gear shift lever to the R

(reverse) position for Gear Transmission.

NOTE: If the engine and mower stop while

repositioning the machine, return the mower

engagement lever to the off position. Start engine and

engage mower. Begin again with Step 2.

4. Release the reverse implement switch and reposition

the machine as the machine begins to move rearward.

5. Resume forward travel. The mower should continue

operating.

6. Repeat procedure to position the machine again.

Using Mower Lift Lever

1. Push down on lift lever (A) slightly and hold locking lever

(B) down with thumb.

2. Move lift lever (A) down to lower mower or up to raise

mower.

CAUTION: Avoid injury! DO NOT use cruise

control when going down hills. Tractor speed

will increase. Operate tractor in a large, open

area to learn how the cruise control works

IMPORTANT: Avoid damage! When cruise control is

not in use, hand lever should be returned manually,

all the way rearward to OFF position. Otherwise,

hand lever will restrict travel of reverse pedal linkage

and reverse speed of tractor will be too slow.

CAUTION: Avoid injury! Rotating blades are

dangerous. Children or bystanders may be

injured by runover and rotating blades.

Before backing up, carefully check the area

around the machine.
