Operating - 8
OPERATING
Operating
Daily Operating Checklist
❏
Test safety systems.
❏
Check tire pressure.
❏
Check fuel level.
❏
Check engine oil level.
❏
Remove grass and debris from machine.
❏
Clean air intake screen.
❏
Check area below machine for leaks.
Avoid Damage to Plastic and Painted
Surfaces
• Do not wipe plastic parts unless rinsed first.
• Insect repellent spray may damage plastic and painted
surfaces. Do not spray insect repellent near machine.
• Be careful not to spill fuel on machine. Fuel may
damage surface. Wipe up spilled fuel immediately.

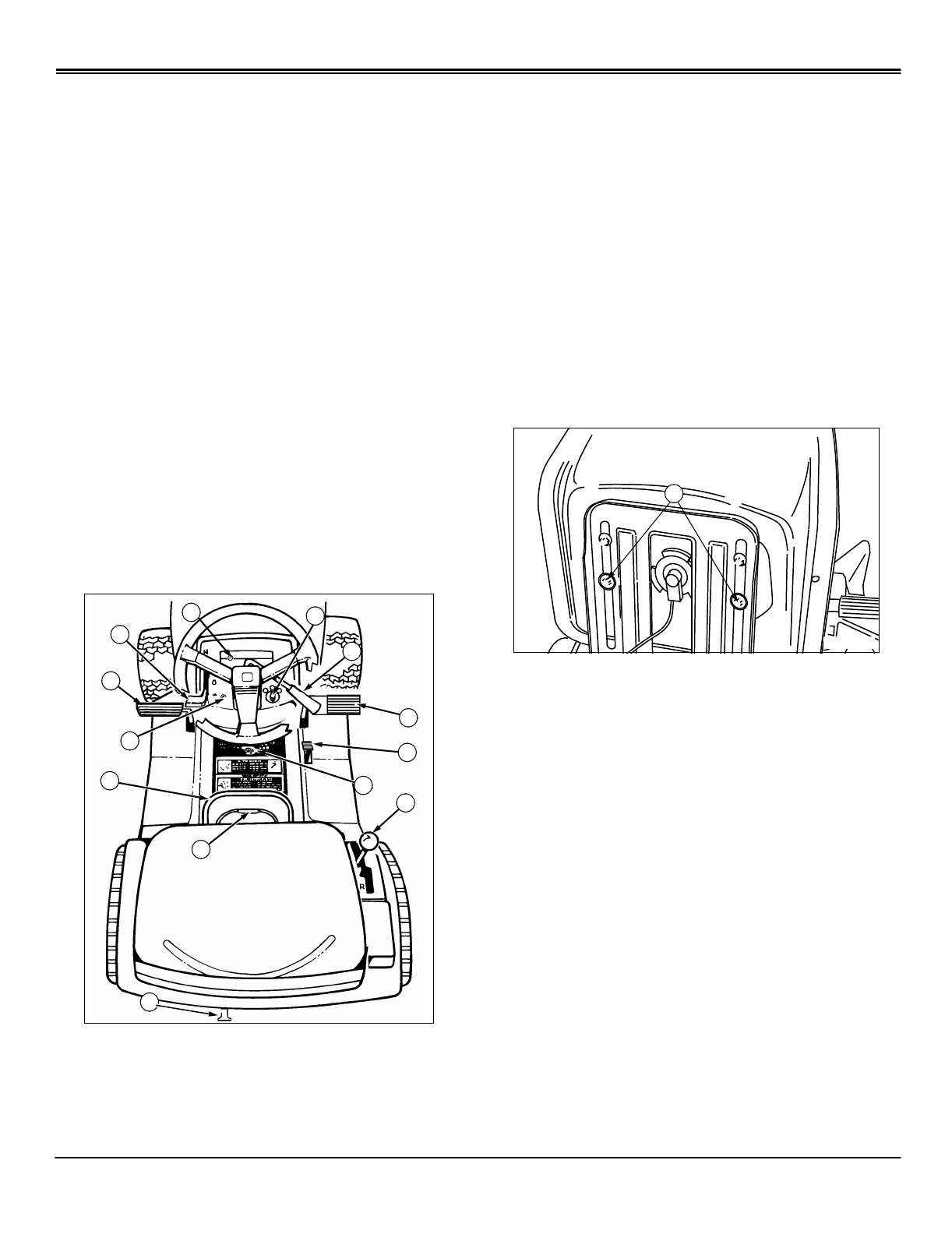

Operator Station Controls
A - Choke Knob (V-Twin)
B - Throttle/Choke Control
C - Foot Pedal - Brake/Clutch/Return to Neutral
D - Reverse Implement Option Switch
E - Attachment Lift Lever
F - Locking Lever
G - Free Wheeling Knob (Automatic Models)
H - Hand Lever: Transmission Shift Lever (Hand
Control Units) (or) Cruise Control Lever (Foot
Control Units)
I - Park Brake
J - Foot Pedal, Reverse (Foot Control Units)
K - Foot Pedal, Forward (Foot Control Units)
L - PTO Drive Lever
M - Ignition Switch
Adjusting Seat
1. Tip seat forward.
Picture Note: Model with capscrew adjuster used
for illustration.
2. Loosen two cap screws (A) two turns.
3. Slide seat forward or rearward on mounting bracket to
desired position.
4. Tighten cap screws or knobs.
5. Lower seat.
