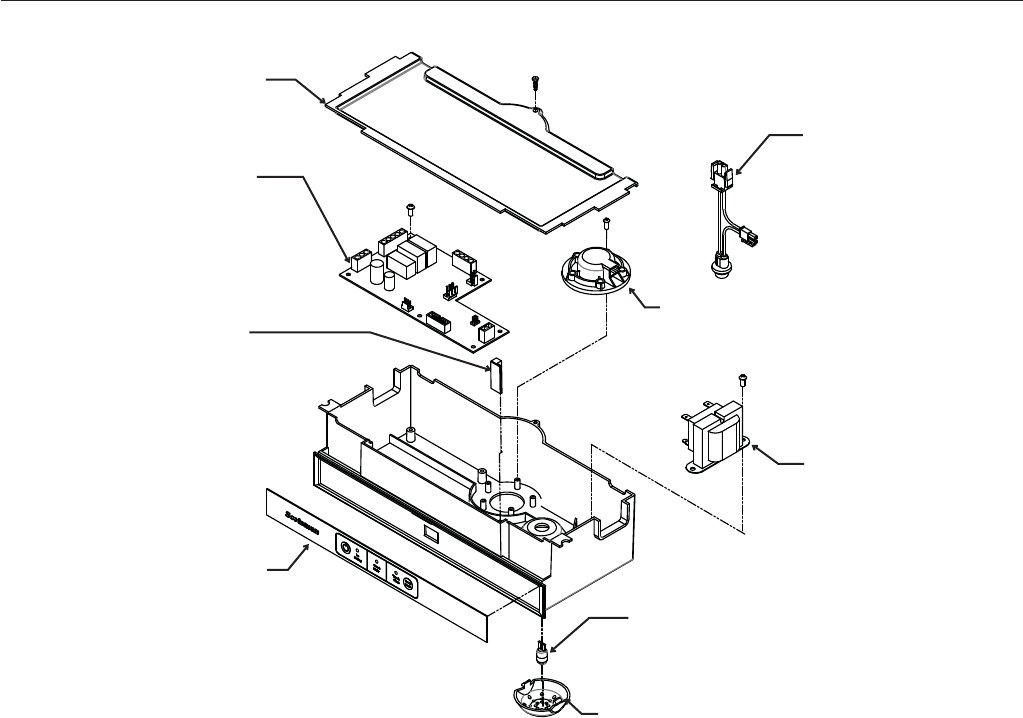

Control System
Item Part
Number Number Description
1 12-2980-02 Harness, bin light
2 11-0579-01 Ice level sensor
3 12-2924-01 Transformer
4 12-2980-01 Bulb
5 02-4380-01 Light cover
6 11-0574-01 Control panel
7 12-2880-03 Bin light switch
8 11-0589-21 Controller
9 02-4386-01 Cover
May 2011
Page 9
SCN60
Service Parts
9
1
2
3
4
5
6
7
8
