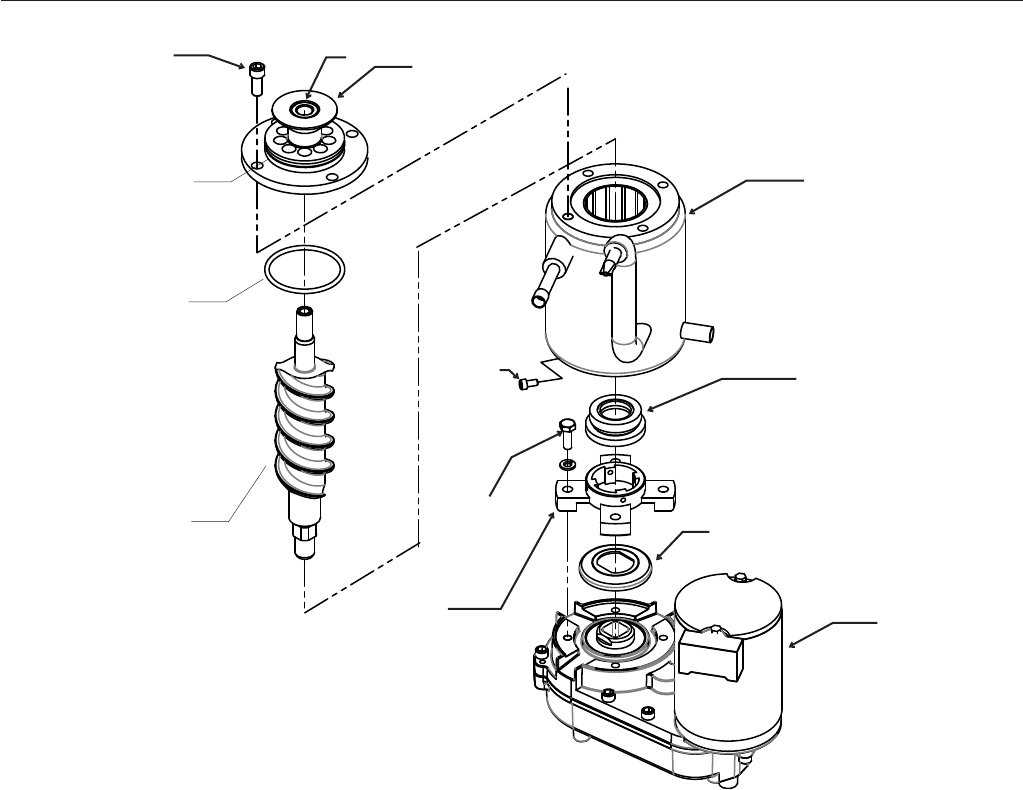

Ice Making Section
Item Part
Number Number Description
1 03-1544-08 Cap screw
2 A39531-001 Breaker w/bearing
2a 02-4619-01 Bearing only
3 02-4558-01 Evaporator
4 02-4599-21 Water seal
5 02-4662-01 Water shed
6 02-4580-21 Gear reducer complete
6a 02-4580-22 Motor*
6b 02-4580-23 Capacitor*
7 03-1544-04 Cap screw
8 03-1405-07 Cap screw
9 02-4625-01 Adapter
10 02-4591-21 Auger
11 13-0617-58 O-ring
* Must connect wires correctly. See label on motor.
May 2011
Page 8
SCN60
Service Parts
1
2
11
10
3
4
6
9
5
8
7
11
2a
