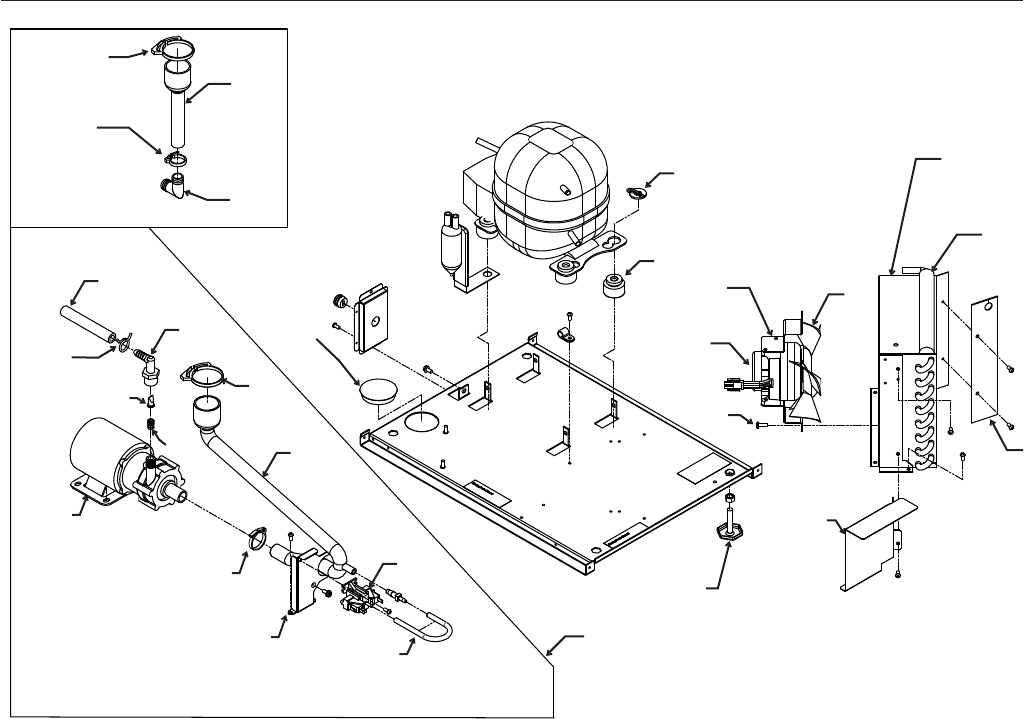

Under Bin Parts
Item Part
Number Number Description
1 03-3821-01 Clip
1a 03-1407-08 Washer
2 18-4700-28 Grommet
3 A39460-001 Shroud
4 13-0909-01 Gasket - order 1 & cut to fit
5 02-4450-01 Air baffle
6 A39556-001 Fan motor bracket
7 12-3024-01 Fan motor
8 02-4197-01 Fan blade
9 03-3818-01 Screw
10 A39825-001 Pump model rain shield
11 03-1608-01 Leg leveler
12 02-1875-18 Hole plug
13 02-2814-13 Hose clamp
14 02-4412-01 Drain hose
15 02-2814-08 Hose clamp
16 16-0671-01 Elbow
17 A37334-001 Discharge hose
18 02-0534-02 Hose clamp
19 02-3522-01 Elbow
20 02-2814-01 Hose clamp
21 02-4413-01 Drain tube
22 11-0504-01 Pressure switch
23 05-0591-01 Switch hose
24 A39370-001 Switch bracket
25 02-2814-13 Hose clamp
26 12-2503-21 Pump & motor only
27 A39462-021 Pump kit
May 2011
Page 7
SCN60
Service Parts
GRAVITY DRAIN
MODELS ONLY
6
8
7
3
5
10
11
12
13
14
15
16
4
17
18
21
22
26
25
23
24
1
2
9
19
20
19b
19a
27
