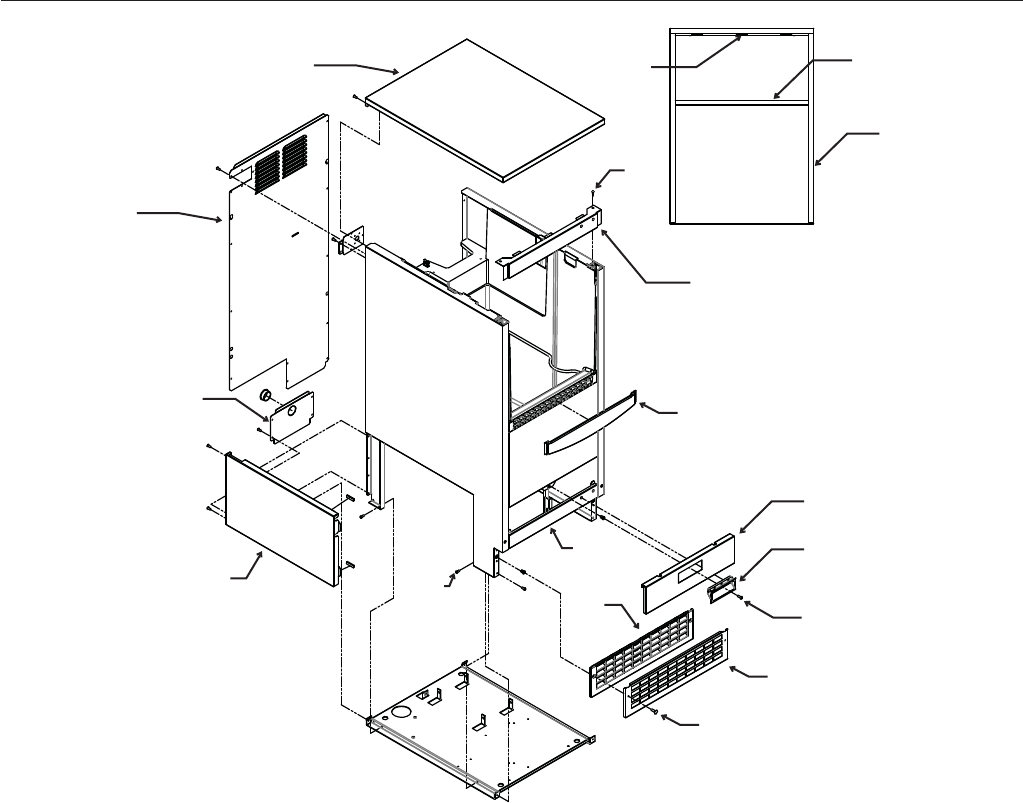

Cabinet
Item Part
Number Number Description
1 13-0943-03 Gasket, top panel
2 13-0943-04 Gasket, top panel
3 13-0943-05 Gasket, top panel
4 03-3836-03 Screw
5 A39364-003 Top hinge bracket, hinge right
A39364-006 Top hinge bracket, hinge left
6 02-4392-01 Inlay
7 A39381-003 Front service panel
8 02-4441-01 Handle
9 03-1403-86 Screw
10 A39469-001 Kick plate cover
11 03-3813-02 Screw
12 02-4390-01 Kick plate
13 A39385-003 Bottom hinge bracket, hinge right
A39385-006 Bottom hinge bracket, hinge left
14 03-1531-01 Screw
15 A39615-001 Side service panel
16 A39683-001 Drain panel
17 A39682-001 Back panel
18 A39362-003 Top panel only
18a 02-4426-01 Insulation, top panel
May 2011
Page 3
SCN60
Service Parts
18
17
15
3
2
5
6
16
10
11
7
8
13
12
9
4
14
1
