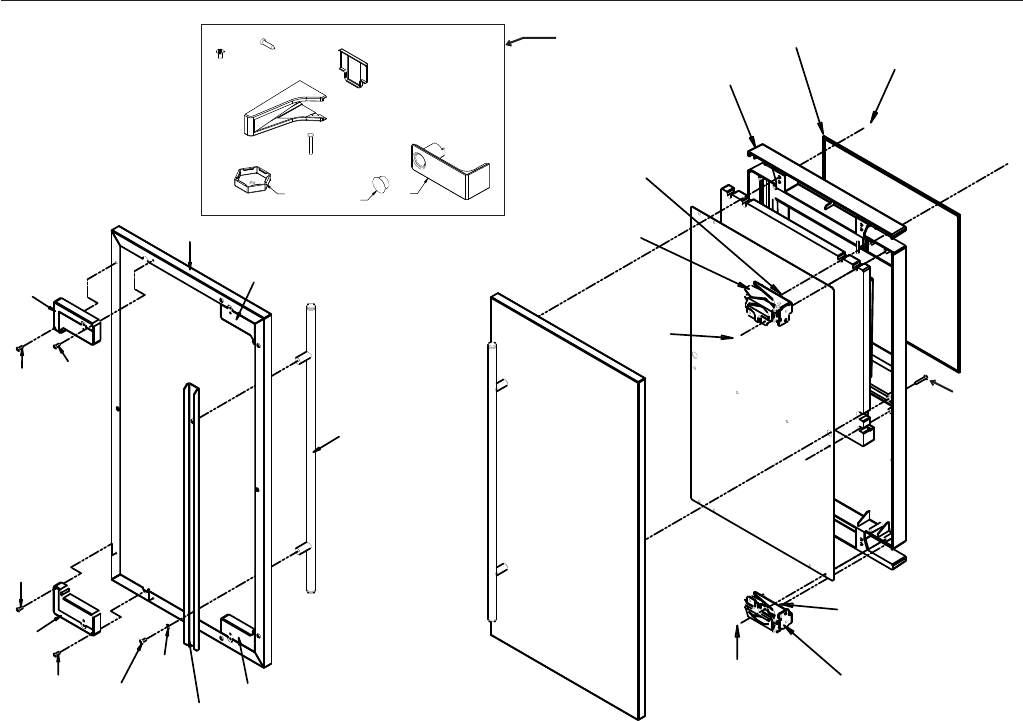

Door Components
Item Part
Number Number Description
1 Door panel kit. Kit includes
items 1 thru 8.
KDFS SS panel, SS handle
2 02-4433-01 Corner block, RH
3 02-4430-01 Handle, SS
4 02-4433-02 Corner block, LH
5 03-1531-01 Screw
6 03-3811-01 Screw
7 03-1410-07 Lockwasher
8 A39390-001 Support bracket
9 13-0949-03 Door gasket
10 03-1404-40 Screw
11 03-3818-01 Screw - hinge to cabinet
12 02-3866-04 Hinge - top right/bottom left
13 03-1404-24 Screw - hinge to door
14 02-3866-03 Hinge
15 03-1403-67 Screw
16 A39513-001 Door assembly, does not
include door panel or hinges
17 02-4415-20 Leg cap, pack of 4
18 02-1875-07 Hole plug
19 02-4474-01 Hinge package
May 2011
Page 2
SCN60
Service Parts
1
3
4
5
5
5
2
5
6
7
8
4
15
11
12
13
13
14
9
10
11
16
19
17
18
2
