Service manual

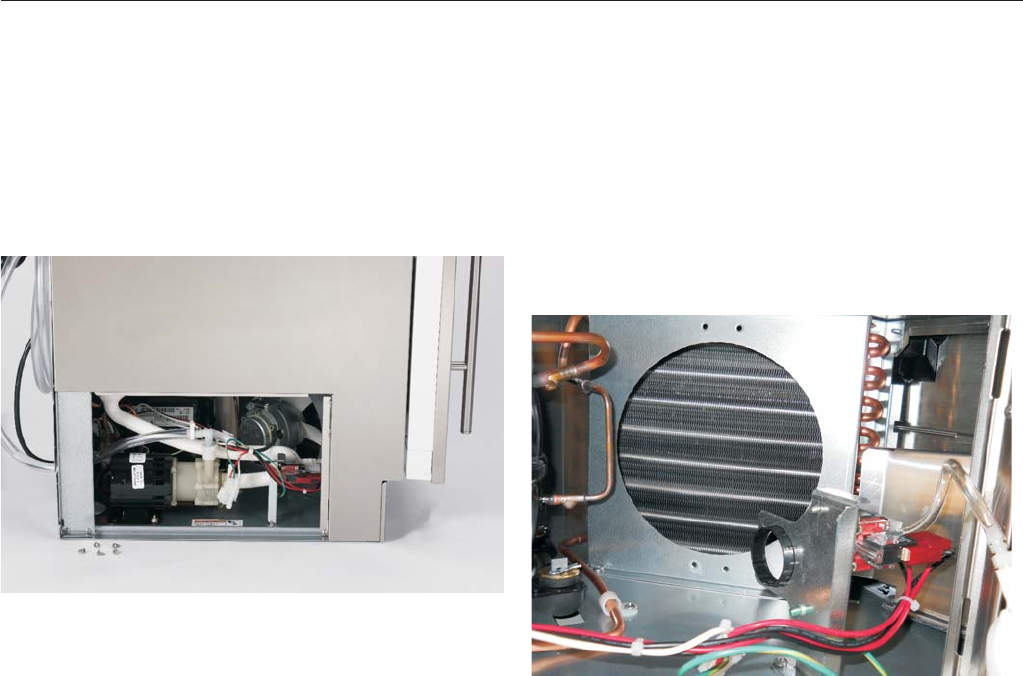

Drain Pump (if equipped)
1 Shut off water supply
2 Remove all ice and/or any standing water.
3 Disconnect power or unplug unit
4 Uninstall and pull unit out to get access to left
side service panel.
5 Remove five screws and the service panel.
6 Disconnect electrical plug to pump motor
7 Disconnect drain hose from pump inlet
8 Disconnect discharge hose from pump
9 Remove two 3/8 inch nuts holding pump to
base, lift pump up and out.
10 Reverse steps to reassemble.
Fan Blade or Motor
1 If equipped with drain pump follow all steps to
remove pump.
2 Unplug fan motor connection.
3 Remove four screws holding fan motor
brackets to shroud.
4 Pull fan blade and motor from unit.
5 If not equipped with a drain pump:
6 Shut off water supply
7 Remove all ice and/or any standing water.
8 Disconnect power or unplug unit
9 Uninstall and pull unit out to get access to left
side service panel.
10 Remove five screws and the service panel.
11 Unplug fan motor connection.
12 Remove four screws holding fan motor
brackets to shroud.
13 Pull fan blade and motor from unit.
11 Service blade or motor and reverse to
reassemble.
