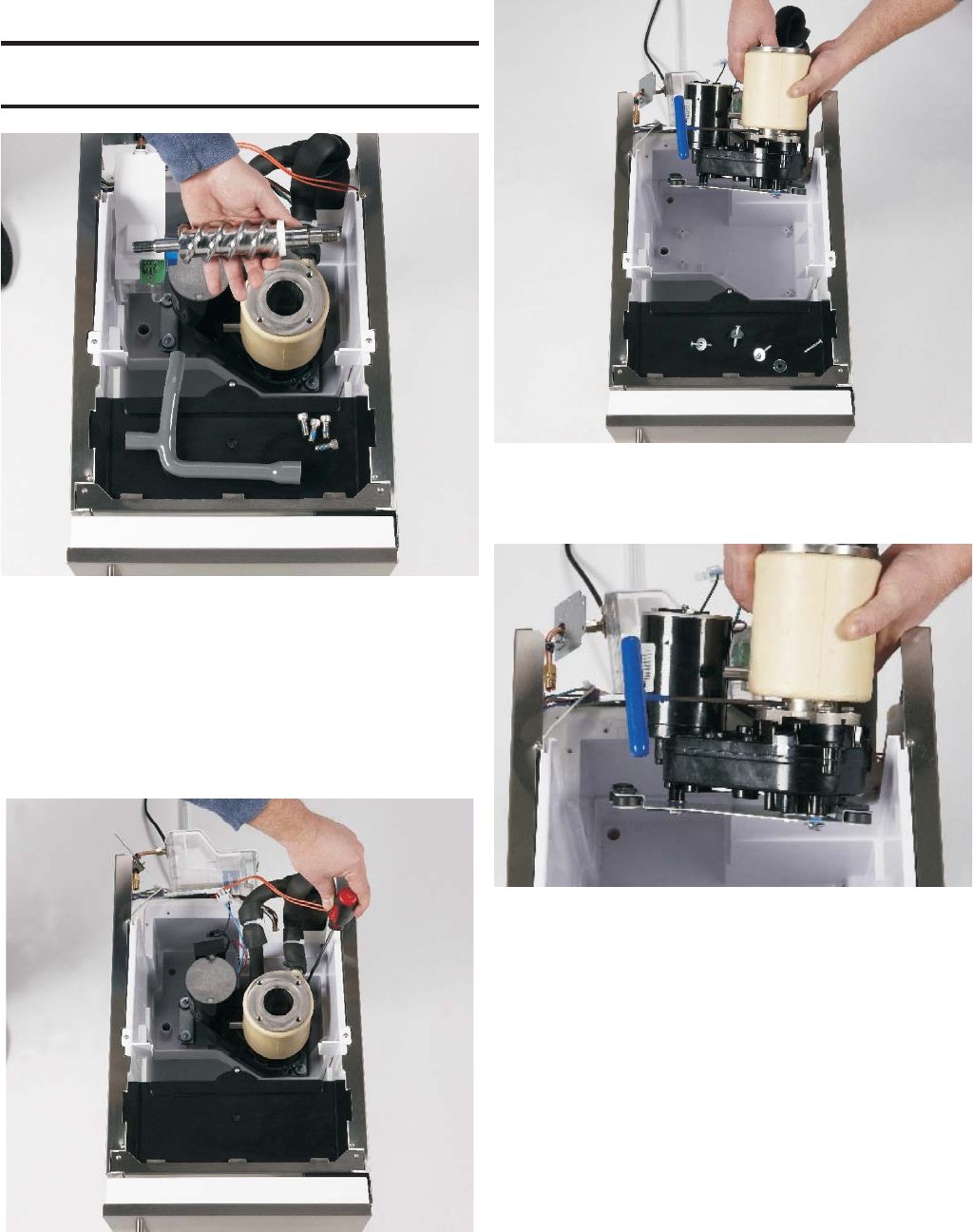

15. Remove breaker & set aside
16. Pull auger from freezer by lifting straight up
(be careful as auger has sharp edges!)
Note: If auger does not lift freely, see Auger
Removal Procedure.
17. Inspect auger flights for signs of wear
18. Inspect evaporator barrel for signs of radial
scoring
19. Remove 4 screws securing gearbox bracket
to compartment base
20. Carefully lift and rest gearbox & bracket
against back of compartment lip
21. Remove four 5/32” allen head screws holding
adapter to evaporator
22. Remove evaporator from gearbox
** tools needed-1/4” & 5/32” allen wrench (T handle
or socket type suggested), Phillips screwdriver - 12
inch or longer recommended.
Replace gear reducer and install a new water seal.
May 2011
Page 15
