May 2011
Page 14
SCN60
Service

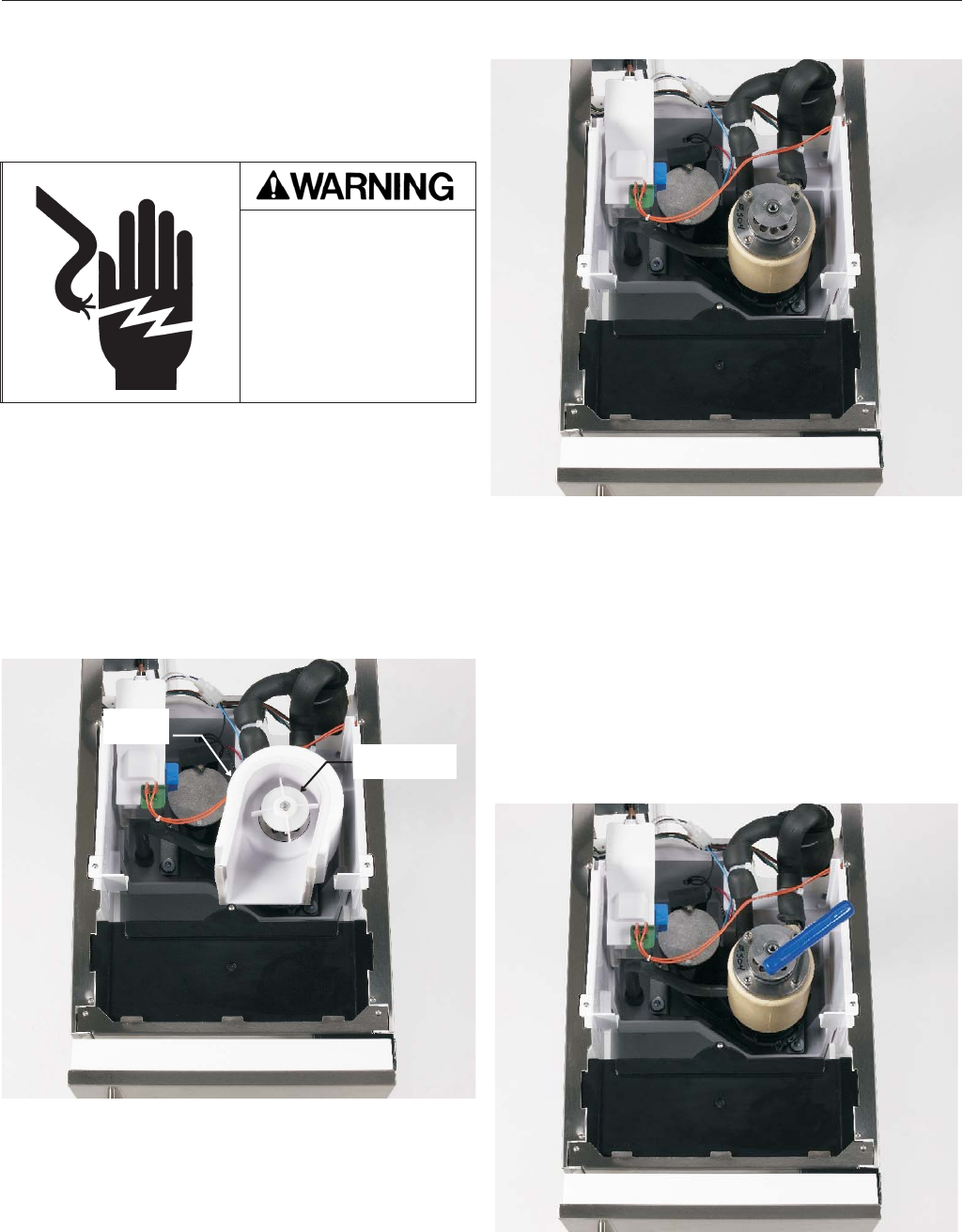

SCN60 Gearbox Access & Removal
1.
Shut off water supply
2. Remove drain plug inside bin compartment
3. Disconnect power supply or unplug unit
4. Uninstall unit and pull out as needed for top
and back access.
5. Remove top panel
6. Remove back panel
7. Remove ice chute/bin wall by unscrewing 2
thumb screws and lifting it out
8. Remove 2 orange wires from water level
sensor (on top of float tank)
9. Rotate ice sweep counter-clockwise and
remove ice sweep
10. Lift and remove ice chute
11. Remove 4 screws securing float reservoir &
set aside
12. Remove gray water tube from evaporator
inlet
13. Disconnect power connection to auger motor
14. Remove 4 bolts securing breaker head to
freezer by using ¼” allen wrench (socket type
- best method)
Hazard of Electrical
Shock.
Disconnect Electrical
Power Before
Servicing.
Chute
Ice Sweep
