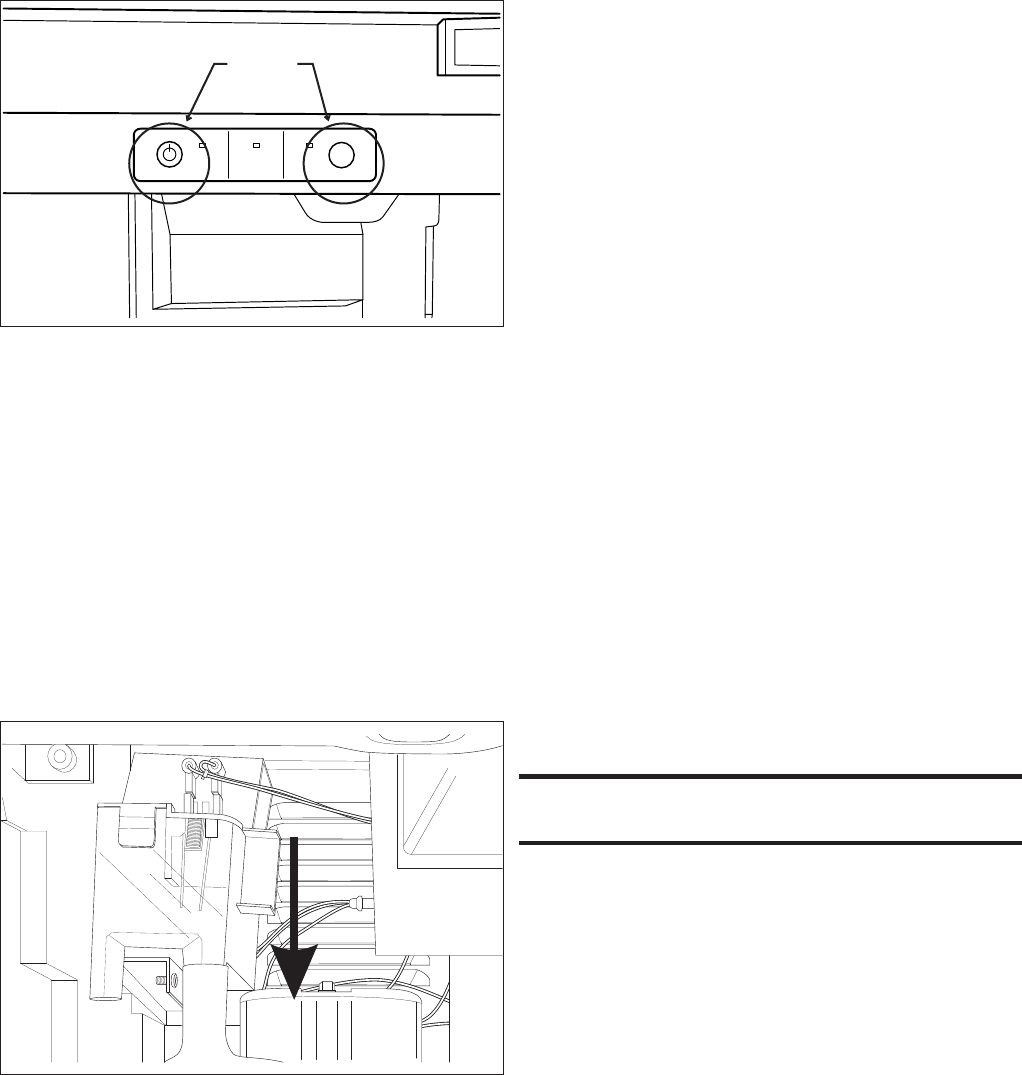

11. Press and HOLD both the Clean-Reset and
On/Off buttons for 5 seconds. The Time to Clean
light will blink on and off.
12. The auger motor alone will be operating for 10
minutes, after that the compressor will start and in
about 5-8 minutes the machine will start to make
ice. The Time to Clean light will now glow steady
until the clean cycle is complete.
Caution: Keep fingers away from moving parts.
After ice making starts, continuously add scale
remover solution to the reservoir to keep it about
half full.
When all 16 oz of the the solution is used, move
the float valve lever down to the On position.
After 40 minutes the ice machine and all the control
panel lights will shut off.
13. Pull the drain plug again to drain the system,
then replace it.
14. Return the reservoir cover to its original
position.
15. Return the upper back wall of the bin to its
original position and secure it with the original
screws. Push in at bottom to snap it into place.
16. Pour a gallon of hot (95
o
F. – 115
o
F.) water into
the bin to flush out the drain and melt all ice that
was made during the cleaning process. Be sure all
ice is melted.
17. Clean the bin liner of mineral scale by using
any left over scale remover solution to scrub the
scale off of the liner. If none is left over, mix a
solution of 2.5 ounces of Clear 1 Scale Remover
and 1 quart of water.
18. Rinse the liner with hot water.
19. Sanitize the bin interior.
20. Push and release the On/Off button to restart
ice making.
The ice scoop should be washed regularly, wash it
just like any other food container.
Other Maintenance
While cleaning the system with scale remover,
check for water leaks at the bottom of the
evaporator. If any are found, call for service.
Note: It is normal for some lime scale to form on
the gear reducer cover. Wipe up any loose scale.
Check the top bearing.
The top bearing is non-metallic and requires no
lubrication. However, it should be checked for wear
occasionally. The top panel must be removed to
access the bearing.
