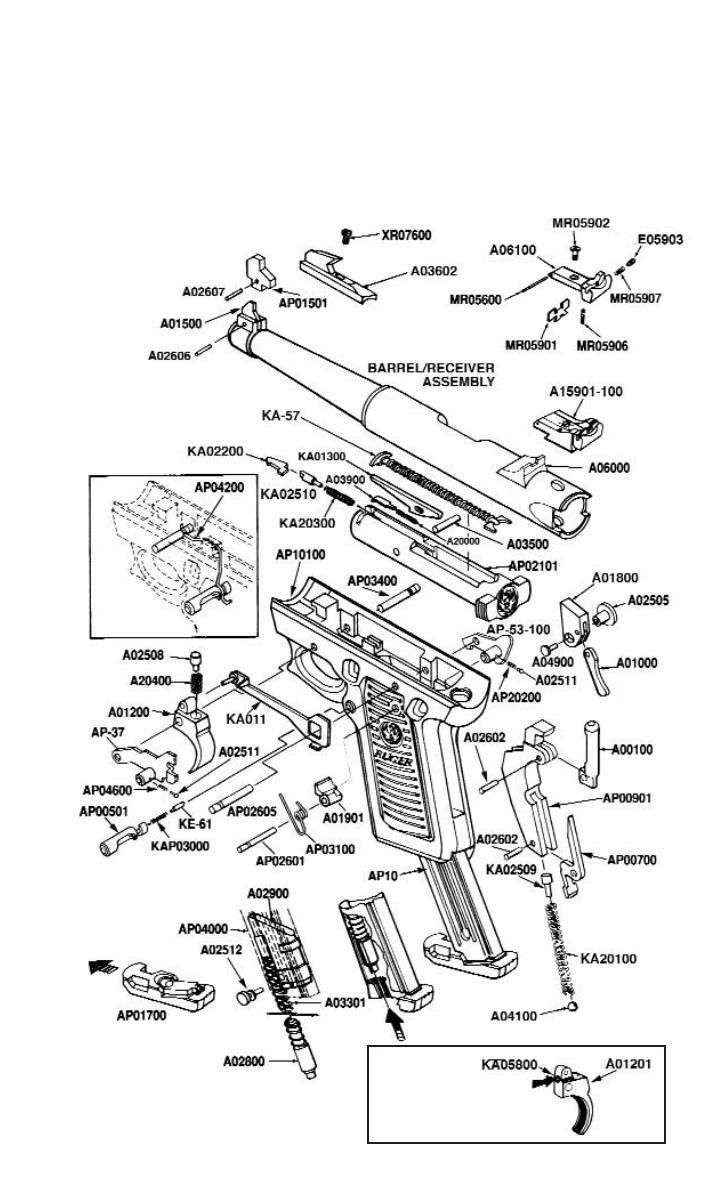

EXPLODED VIEW
Note B — The Bolt Stop components in this group are for holding open the bolt and are
not functionally related to the Bolt Stop Pin (A00100) and Bolt Stop Pin Pivot (A02602).
These two later components are attached to the Mainspring Housing (AP00901). See parts
drawing below for relationship of parts.
Front and rear sights
for the Target Models
are not adaptable to
Standard Models.
Arrow points to the
adjusting screw in Target
Trigger
Target
Trigger
