Instruction manual

38
RUGER
®
MARK II

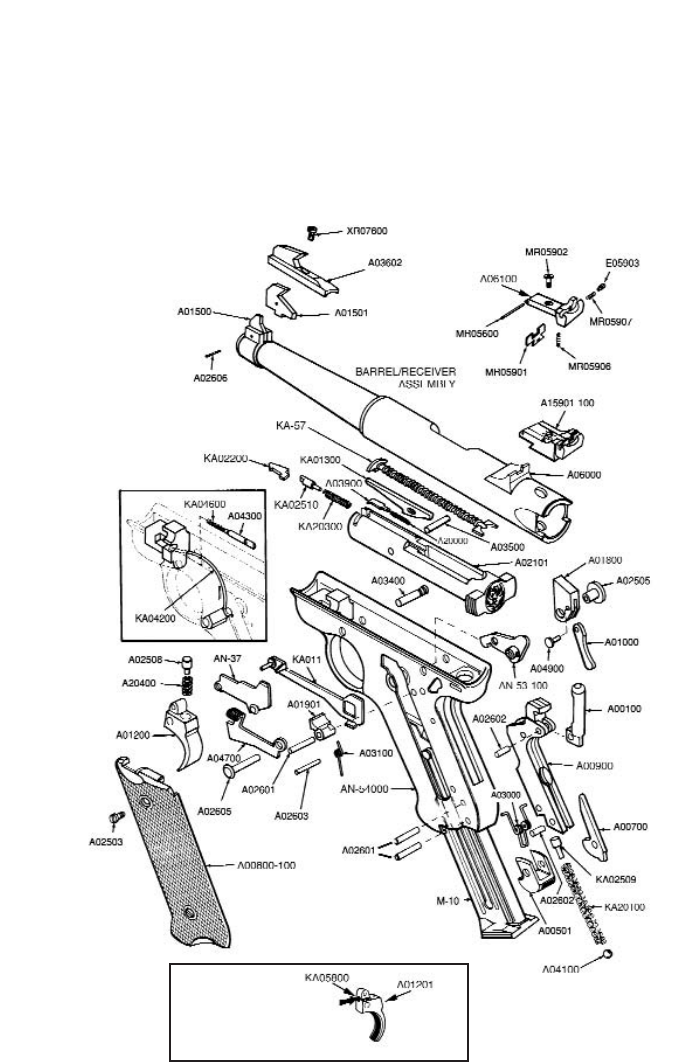

EXPLODED VIEW
Note A — The Bolt Stop components in this group are for holding open the bolt and are
not functionally related to the Bolt Stop Pin (A00100) and Bolt Stop Pin Pivot (A02602).
These two later components are attached to the Mainspring Housing (A00900). See parts
drawing below for relationship of parts.
WARNING regarding non-Ruger Grip Panels. Note: The Hammer Pivot (A02605) is
prevented from drifting out of the left side of the Grip Frame by contact with the inner
surface of the left Grip Panel. Therefore, be certain that the clearance cut in the left Grip
Panel is the correct depth to maintain the Hammer Pivot fully seated in the Grip Frame.
Front and rear sights
for the Target Models
are not adaptable to
Standard Models.
Arrow points to the
adjusting screw in Target
Trigger
Target
Trigger
