Date Code 20070301 RADIORANGER Instruction Manual

SEL-8310 Remote Fault Reader Operation

Operation

3.9

Operation

The {Power} button is located in the top left corner of the SEL-8310. Pressing the

{Power} button causes the unit to enter a Power On Self-Test (POST) and alternates

illuminating all LEDs in solid green, solid yellow, and solid red for 0.75 seconds each.

Provided that the battery voltage is 3.0 Volts or above, it annunciates successful POST

with a four-tone scan. If the battery voltage is below 3.0 Volts, the device will turn off

to prevent damage to rechargeable batteries.

Scan Complete

FCI Status Summary—

Tripped FCIs

FCI Status Summary—No

Tripped FCIs

NEXT (No Data to Display)

Data Collision

NEXT (HMI Adjust Mode)

SCAN (HMI Adjust Mode)

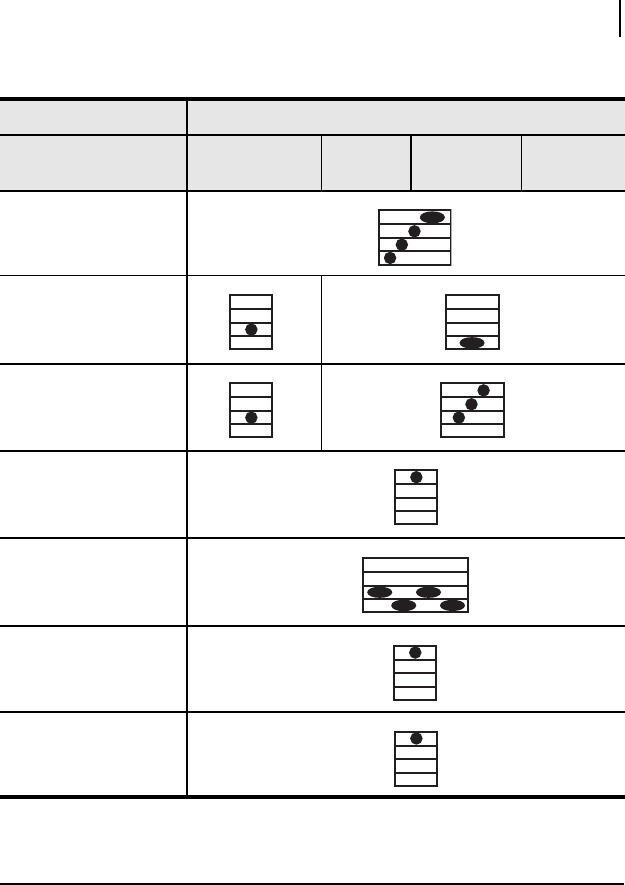

Table 3.5 Complete List of SEL-8310 Audio Indications (Sheet 2 of 2)

Audible Tones

SEL-8310 Status Silent Mode

Summary

Mode

Row/Column

Mode

Morse Code

Mode
