SEL-8310 Remote Fault Reader Operation

Audio Indication

3.8

For example, in Row/Column Mode, the FCI Detail audio indication

annunciated if Way 2 is the lowest Way containing a fault, and with Phases B

and C faulted would be:

Button Press

The Button Press annunciation occurs under any of the following circumstances:

➤ Either the

{Scan} or {Next} button is pressed in HMI Adjust Mode

(see HMI Adjust Mode on page 3.13 for more details)

➤ After the

{Next} button is pressed in Normal Mode when there are no

data to display

➤ The

{Next} button is pressed in Silent Mode

➤ Either the {Scan} or {Next} button is pressed with the SEL-8310 in

Low Power Mode

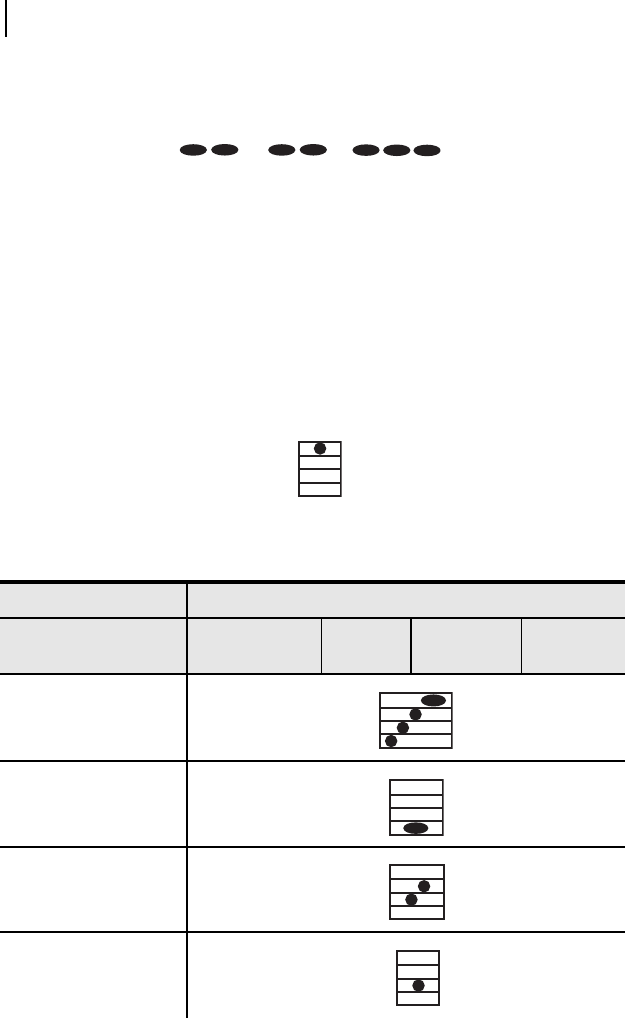

Figure 3.14 Button Press Audio Indication in all Modes

Table 3.5 Complete List of SEL-8310 Audio Indications (Sheet 1 of 2)

Audible Tones

SEL-8310 Status Silent Mode

Summary

Mode

Row/Column

Mode

Morse Code

Mode

Power-Up

POST Fail

Scan Initiate

Response Received
