User's Manual

Date Code 20070301 RADIORANGER Instruction Manual
SEL-8300 Wireless Interface Installation
Testing and Verifying Installation
2.5

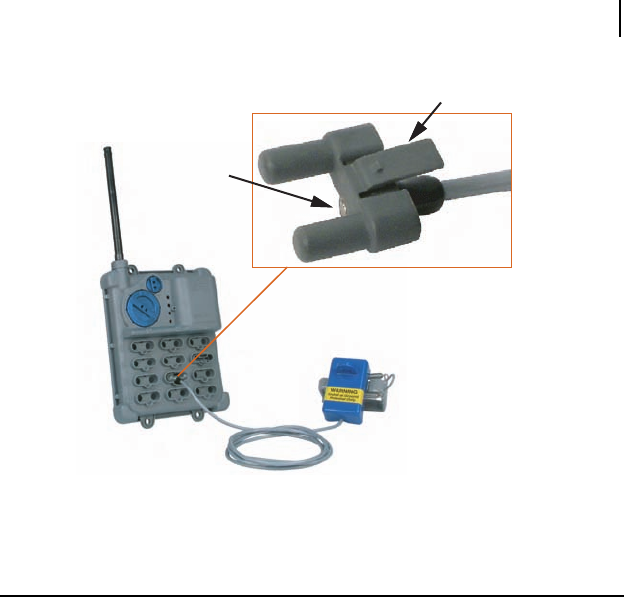

Figure 2.5 The Wireless Interface Has 12 Magnetic Probe Ports
Testing and Verifying Installation
After installing the SEL-8300 Wireless Interface, test its operation and verify the
communications range.
Perform the following steps to make sure all FCIs are connected properly to the
Wireless Interface.
Step 1. On the SEL-8300, turn the
PWR dial to the ON position.
Step 2. Set the
ID dial to any of the eight ID positions.
Step 3. Turn on the SEL-8310 Remote Fault Reader.
Step 4. Press the {Scan} button on the SEL-8310 and verify that it
communicates with the SEL-8300.
Step 5. Verify that the SEL-8310 display of the ID and FCI probes matches
the SEL-8300. See Section 3: SEL-8310 Remote Fault Reader
Operation for information on using the SEL-8310 Remote Fault
Reader.
Step 6. After the connection and status is correct, exit the subsurface vault
and verify that the communications range is adequate. Remember to
close the vault when determining communications range.
SEL-8300 Wireless Interface
Fault Circuit Indicator (FCI)
Permanent magnet
to indicate installed
probe
Enlarged View of R ADIO RANGER Interface Probe
Clip to hold probe
in place
