SEL-8300 Wireless Interface Installation
SEL-8300 Installation
2.2
SEL-8300 Installation
Securely mount the SEL-8300 using four 1/4 inch-sized (6.0 mm) fasteners (not
included) designed for the surface to which the unit is being attached. To protect the
polycarbonate material of the Wireless Interface, use a flat washer in conjunction with
each fastener. We recommend that you install each fastener with a torque of 25 in/lbs
not to exceed 50 in/lbs. Install the SEL-8300 vertically to ensure optimal integral
antenna position and to maximize the life of the integral lithium battery.

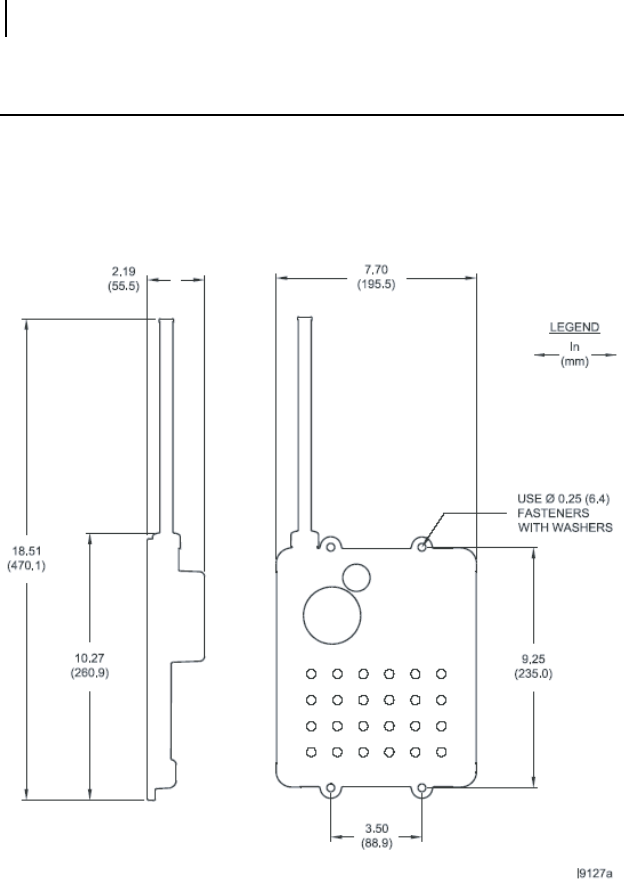

Figure 2.2 SEL-8300 Dimensional Diagram
Standard SEL FCI lead lengths for magnetic probe outputs are 12 feet. Additional lead
lengths can be specified. Mount the SEL-8300 in a location that provides access to all
FCI magnetic probes. The R
ADIORANGER system communicates via 900 MHz; to
improve the range, install the SEL-8300 in locations with few RF impediments, such as
below a grate, if possible. Additionally, RF performance will be compromised in vaults
where flooding can occur. In vaults where flooding is common or where the FCI lead
