User's Manual

RADIORANGER Instruction Manual Date Code 20070301
Introduction and Specifications
Connections and System Diagram
1.2
subsurface vaults. The RADIORANGER system can dramatically reduce fault-locating
times in dense metropolitan areas, reduce troubleshooting costs, improve reliability,
and improve personnel safety.
Connections and System Diagram
SEL fault indicators equipped with magnetic RADIORANGER Interface Probes
communicate their status to the Wireless Interface. Utility personnel can quickly
retrieve subsurface FCI status at street level via the wireless communications link
between the Wireless Interface and Remote Fault Reader.

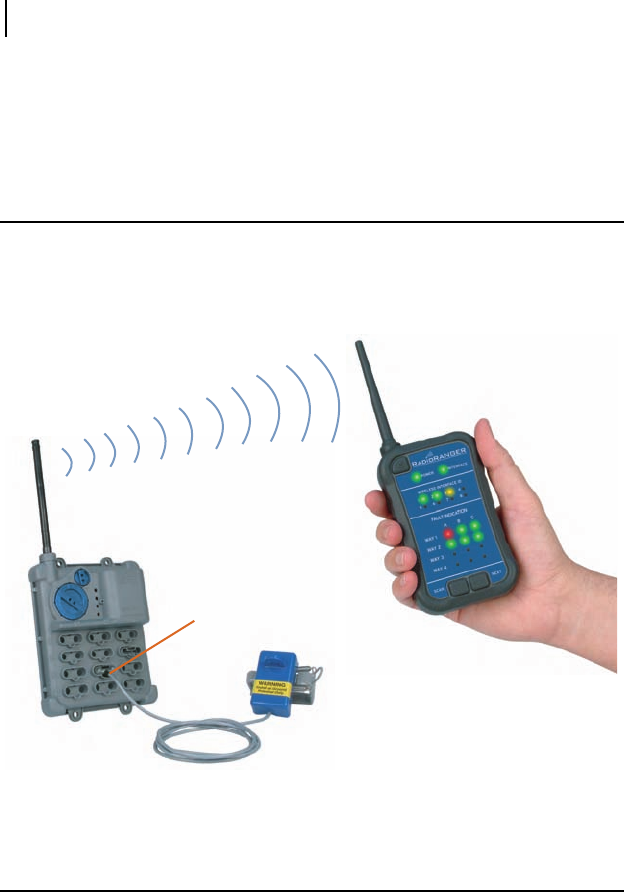

Figure 1.1 RADIORANGER System
Accessories
For the most effective performance of the RADIORANGER in a vehicle, use the
optional accessory kit. The kit includes a windshield-mounting bracket for the Remote
Fault Reader and a magnetically-mounted remote antenna terminated with the
appropriate connector. The accessory kit comes in a hard carrying case for storage and
portability. Please consult an SEL sales representative or www.eosmfg.com for more
details.
Wireless Interface
R
ADIO RANGER
Interface Probe
Fault Indicator
Remote Fault Reader
