SEL-8310 Remote Fault Reader Operation
Audio Indication
3.5

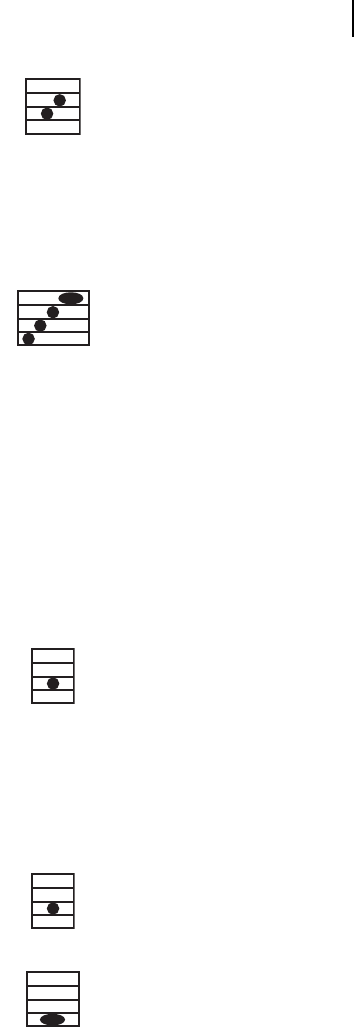

Figure 3.4 Scan Initiate Audio Indication in All Audio Modes
Scan Complete
The Scan Complete event is annunciated after a scan has completed. This is the same
tone sequence that plays at power-up.
Figure 3.5 Scan Complete Audio Indication in All Audio Modes
FCI Status Summary
The FCI Status Summary tones provide feedback as to the status of the faulted circuit
indicators connected to an SEL-8300 within range. The pitch and sequence of the tones
indicate whether any or none of the connected FCIs are in the tripped state and no
summary or detail sequence annunciation is already in progress.
Response Received
The Response Received tone will be annunciated during a scan whenever valid data are
received from an SEL-8300 within range. This is a single short tone.
Figure 3.6 Response Received Audio Indication in All Audio Modes
FCI Status Summary—Tripped FCI(s)
The Tripped FCI(s) status will be annunciated if the SEL-8310 receives valid data from
an SEL-8300 with at least one tripped FCI. This annunciation will occur following a
press of the
{Next} button, if the next ID contains at least one tripped FCI.
Figure 3.7 FCI Status Summary–Tripped FCI(s) Indication in Silent Mode
Figure 3.8 FCI Status Summary–Tripped FCI(s) Indication in Summary,
Row/Column, or Morse Code Mode
P1
P2
P3
P4
P1
P2
P3
P4
P1
P2
P3
P4
P1
P2
P3
P4
P1
P2
P3
P4
