SEL-8300 Wireless Interface Installation
SEL FCI Connections
2.4

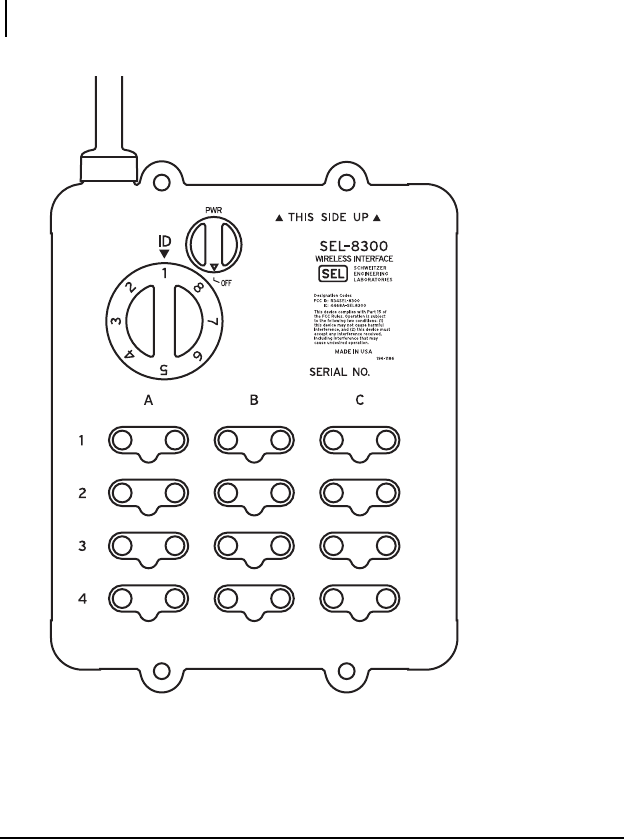

Figure 2.4 SEL-8300 Informational Diagram
SEL FCI Connections
The interface portion of the SEL-8300 is equipped with 12 FCI magnetic probe
interface ports aligned in a 4 x 3 matrix. The rows represent Ways (of a multiway
switch) 1, 2, 3, and 4, as read from top to bottom. The columns represent Phases A, B,
and C, as read from left to right. For example, a probe installed in the top left position
would correspond to Phase A of Way 1. The location of each FCI probe corresponds to
how the probes are displayed on the SEL-8310 Remote Fault Reader.
