Assembling TSX Momentum Components
98
870 USE 101 00 V.3
Guidelines for Labeling the CPU, Continued
Example of a
Fill-In Label

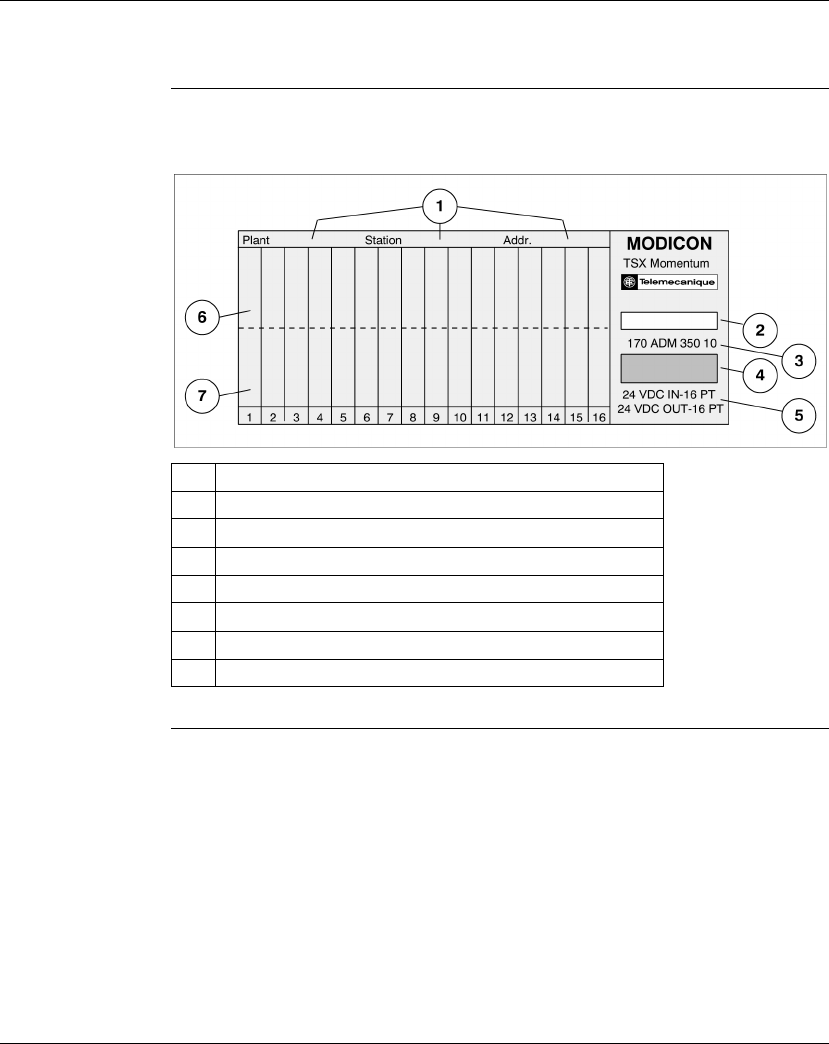

A fill-in label is illustrated in the illustration below. The numbered pointers in the
illustration refer to the descriptions in the table that follows.
No. Description
1 Fields for plant name, ston name and network address
2 Cutout–the model number of the adapter shows through
3 Model Number of the I/O base
4 Color code of the I/O base
5 Short description of the I/O base
6 Field for the symbol name of inputs
7 Field for the symbol name of outputs
