Assembling TSX Momentum Components
870 USE 101 00 V.3 83
Disassembling a Processor Adapter from an I/O Base, Continued
Procedure:
Disassembling
an Adapter from
an I/O Base,
Continued
Step Action

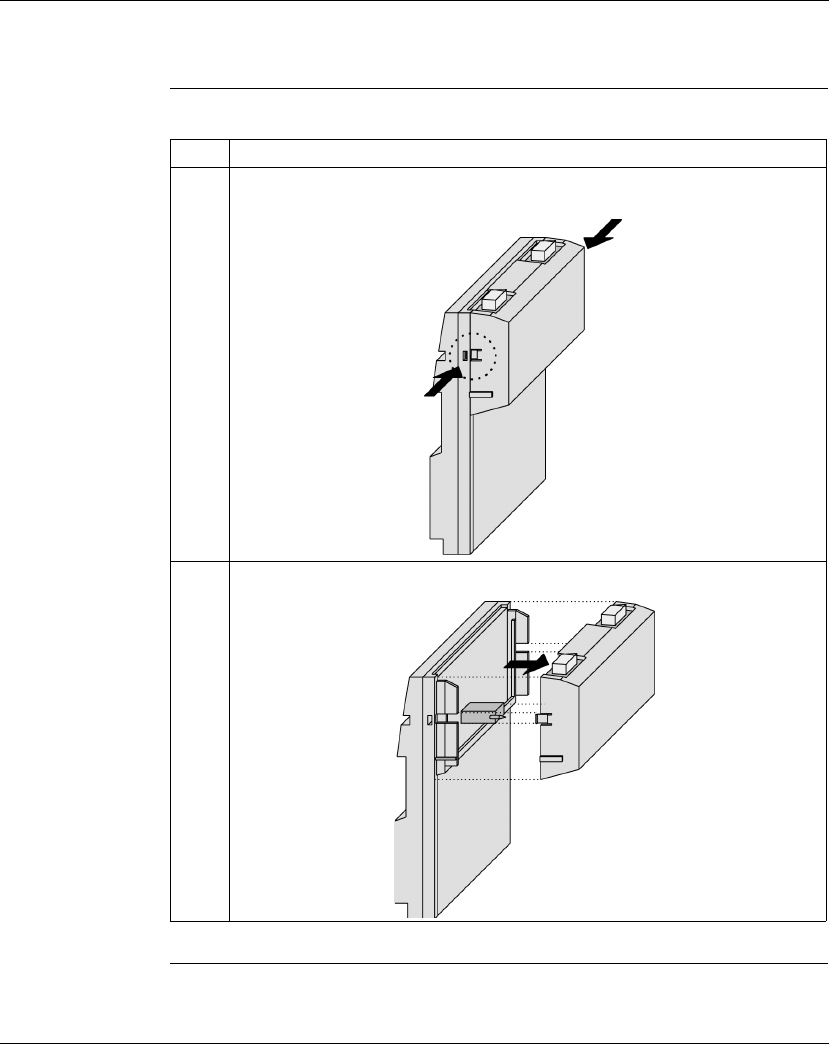

3 Use a screwdriver to push the clips on both sides of the Processor Adapter inward,
as shown in the illustration below.
4 Lift adapter straight up and away from base, maintaining pressure on clips.
