Option Adapters
70
870 USE 101 00 V.3
Front Panel Components
Overview The front panel includes:
l Two 9-pin D-shell connectors for Modbus Plus communications
l Three LED indicators
l Battery compartment
l Address switches

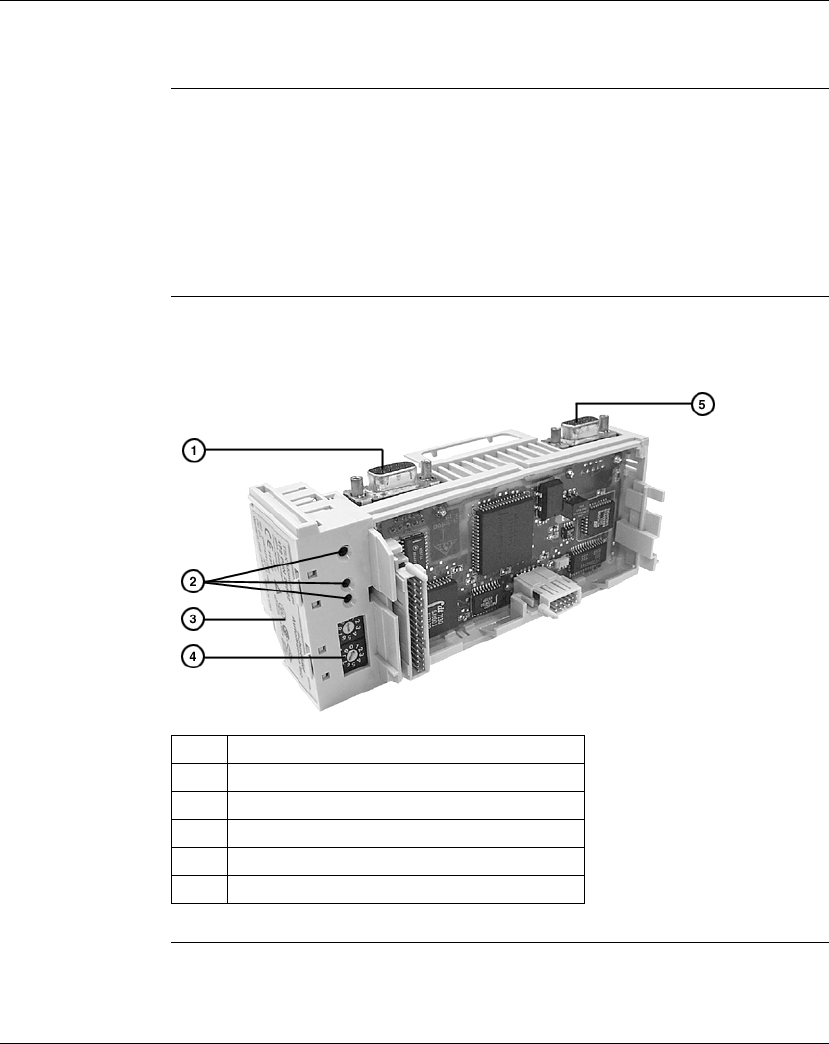

Illustration The illustration below shows the LED indicators, address switches, battery
compartment and Modbus Plus connectors.
Continued on next page
Label Description
1 9-pin D-shell connector for Modbus Plus port A
2 Array of three LED indicators
3 Battery compartment door
4 Address switches for Modbus Plus
5 9-pin D-shell connector for Modbus Plus port B
