Overview of TSX Momentum M1 Processor Adapters
46
870 USE 101 00 V3
171 CCC 960 20
Overview This section describes the 171 CCC 960 20 Processor Adapter, including key
features, a illustration and specifications.
Key Features The key features of this Processor Adapter are:
l Ethernet port
l I/OBus port
l 544K bytes of internal memory
l 50 MHz clock speed

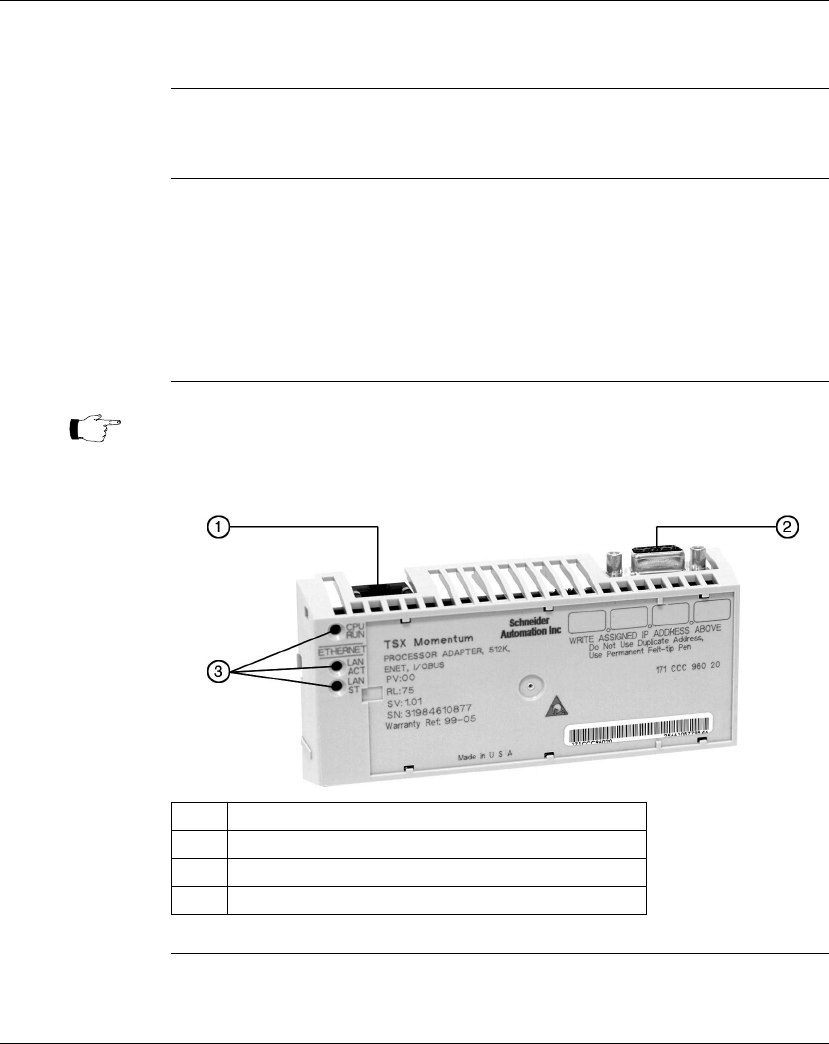

Illustration The connectors and LED indicators are shown in the following illustration:
Continued on next page
Note: The Ethernet port connector looks like a Modbus port connector. Do not
attempt to use an Ethernet adapter as a Modbus unit. Do not attempt to
place a Modbus connector in an Ethernet connector.
Label Description
1 Ethernet port connector
2 I/OBus port connector
3 LED indicators
