Saving to Flash with Concept
870 USE 101 00 V.3 377
Saving to Flash, Continued
Procedure,
Continued
Continued on next page
Step Action

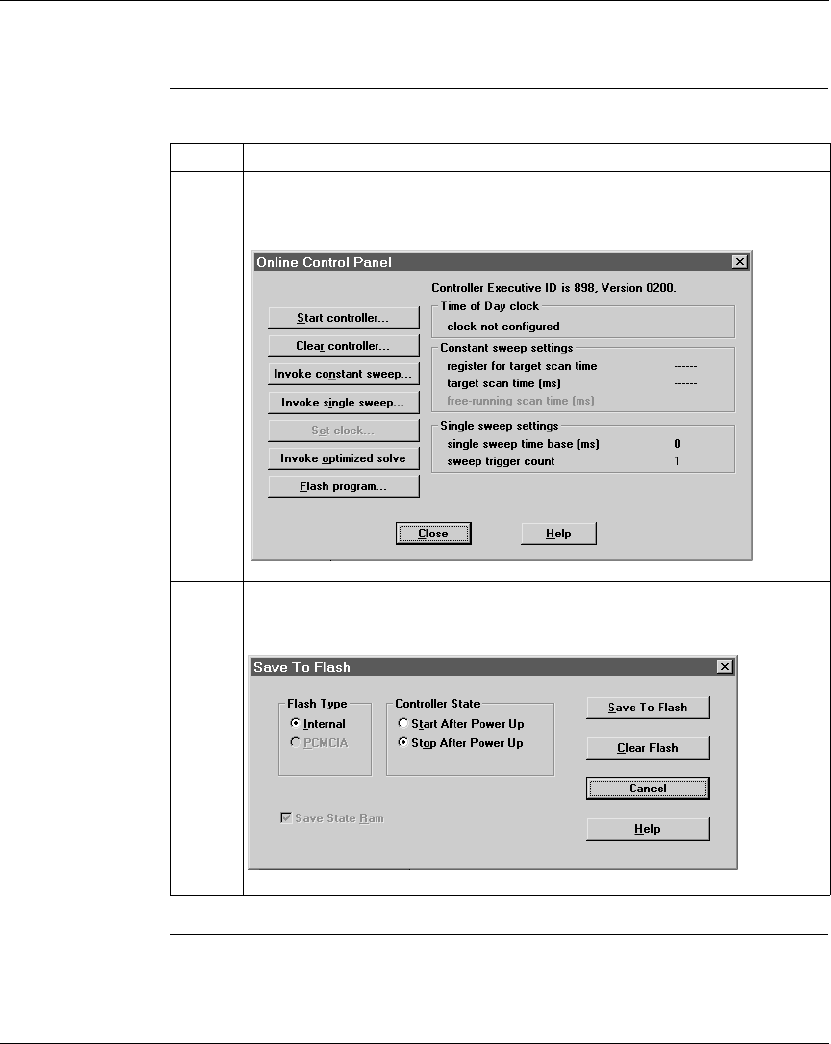

4 From the Online menu on the main menu bar, select Online control panel.
Result: The Online Control Panel appears.
5 Click the Flash program... button.
Result: The Save to Flash dialog box appears.
