Saving to Flash with Concept
376
870 USE 101 00 V.3
Saving to Flash, Continued
Procedure Follow the steps in the table below to save to Flash:
Continued on next page
Step Action

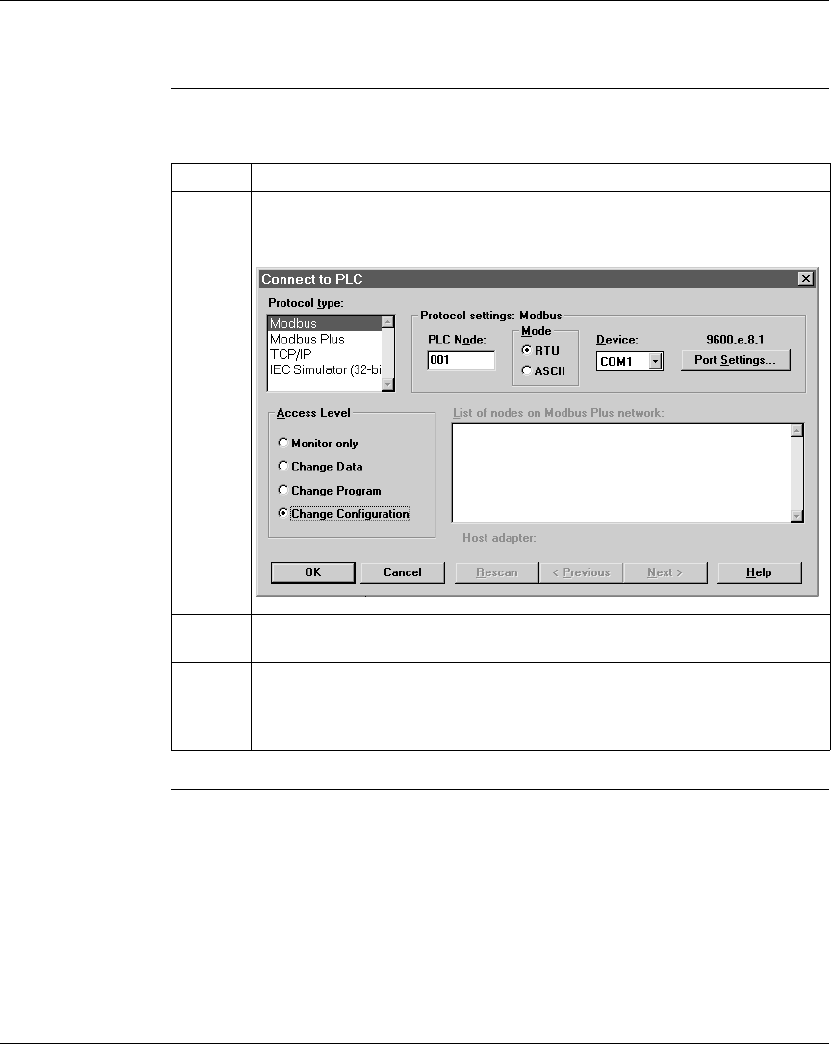

1 From the Online menu on the main menu bar, select Connect.
Result: The Connect to PLC dialog box appears.
2 Select the correct parameters to connect with your PLC. Under Access Level,
select the radio button to Change Configuration.
3 Click <OK>.
Result: The Connect to PLC dialog box disappears and Concept connects to
your PLC.
